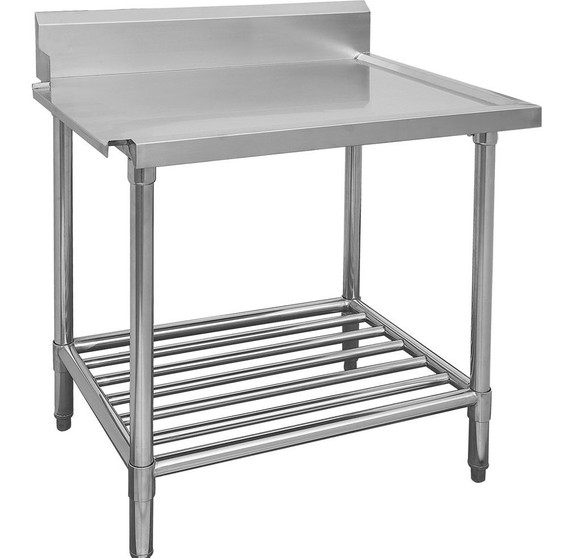

Streamline rack handling and clean ware unloading in busy kitchen wash-up zones with the WBBD7-1200L/A 1200mm Commercial Stainless Steel Left Outlet Dishwasher Bench. Engineered as a practical, reliable, and cost-effective sorting and landing bench for Australian commercial kitchens, cafés, restaurants, bars, and catering operations, this unit connects seamlessly to the left outlet/exit side of pass-through dishwashers.
Fabricated from premium 1.2mm SUS304 (18/8) food-grade stainless steel, the benchtop is reinforced underneath with a 15mm XPS insulation board, a protective stainless steel backing panel, and heavy-duty ‘U’ channel supports. It features a 180mm fully enclosed bevelled splashback to protect surrounding walls from moisture and debris. Supported by 4 heavy-duty tubular stainless steel legs with fully adjustable polished disc feet, the WBBD7-1200L/A delivers total stability for heavy racks of crockery and glassware.
Key Features & Specifications
-
Left Outlet Dishwasher Orientation: Designed specifically as an exit/landing work bench connecting to the left-hand side of commercial pass-through dishwashers (when facing the bench, the dishwasher outlet connects on the left).
-
Premium 304-Grade Stainless Steel: Constructed from heavy-duty 1.2mm SUS304 (18/8) stainless steel for maximum corrosion resistance, sanitation compliance, and durability.
-
Reinforced Heavy-Duty Benchtop: Lined with 15mm XPS insulation board, stainless steel backing panel, and robust ‘U’ channel reinforcements to support loaded dish racks without flex.
-
180mm High Bevelled Splashback: Fully enclosed, stainless steel-backed 180mm high by 30mm thick bevelled splashback prevents water and debris from contacting kitchen walls.
-
Adjustable Stainless Steel Legs: Supported by 4 × 42mm Ø stainless steel legs (1.2mm thick) fitted with fully adjustable polished disc feet to level the bench on uneven floors.
-
Flat-Packed for Easy Assembly & Transport: Supplied flat-packed with an instruction manual and required tools for quick and simple on-site assembly.
-
Optional Mobility Kit: Compatible with lockable commercial castor kits for flexible kitchen cleaning access.
Detailed Technical Specifications
| Feature |
Specification |
| Product Model / SKU |
WBBD7-1200L/A |
| Product Type |
Commercial Stainless Steel Flat Work Bench for Pass-Through Dishwashers |
| Outlet Configuration |
Left Outlet / Exit (Connects on the left side when facing the bench) |
| Bench Dimensions (W x D x H) |
1200 mm × 700 mm × 900 mm |
| Benchtop Material |
1.2 mm Premium SUS304 (18/8) Stainless Steel |
| Benchtop Reinforcement |
15 mm XPS Insulation Board + S/S Backing Panel + 'U' Channels |
| Splashback Profile |
180 mm High × 30 mm Thick (Bevelled, Fully Enclosed S/S Backed) |
| Leg Configuration |
4 × 42 mm Ø Stainless Steel Legs (1.2 mm thick) |
| Foot Type |
Fully Adjustable Polished Stainless Steel Disc Feet |
| Assembly & Delivery |
Flat-Packed (Includes assembly tools & instruction manual) |
| Mobility Option |
Castor Kits Available (Lockable) |
| Warranty |
2 Years Parts Only Warranty |
Outlet Direction Clarification:
• Left Side Outlet Bench (WBBD7-1200L/A): When facing the bench, the dishwasher outlet and connection are located on the left side.
• Right Side Outlet Bench: When facing the bench, the dishwasher outlet and connection are located on the right side.
Delivery Information: Residential address deliveries require a custom freight quote. Kindly contact our friendly sales team prior to placing your order to arrange delivery to a residential address.
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
