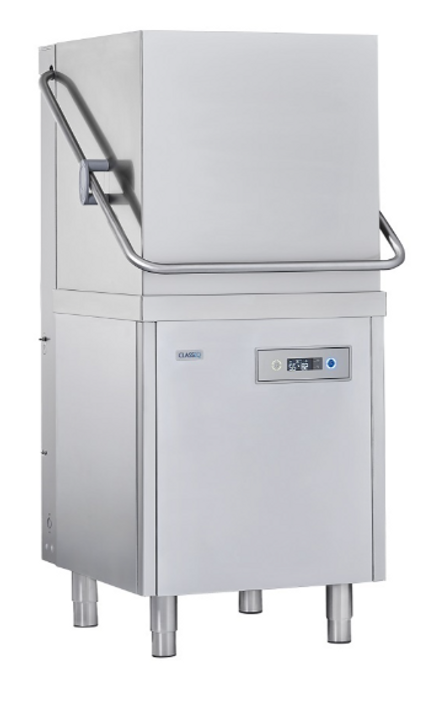

Classeq P500 Pass Through Dishwasher

Classeq P500 Pass Through Dishwasher

High volume dishwashers suitable for straight-through or corner situated operation, the P500 machines are capable of washing up to 720 plates per hour.

Reduced water consumption via 39 litre wash tank ensures minimised running costs. Easy cleaning due to the continuous hood clean and removable front panel allows excellent service access.

Standard P500 machines come in 20 Amp, 3-phase standard or available in 15 Amp single phase.

Features:

• Three Wash Programs - Standard (3 min), light (1.5 min) and Intense (5 min) cycles allow for maximum output without compromising wash quality.
• Built-In Components - The P500 comes with a built-in drain pump and rinse booster pump ensuring it meets all installation regulations and requirements. Integral water softener and built-in chemical dispenser are available as optional extras.
• Simple Two Touch Control Panel Operation - Simple two-button control for improved user experience.
• Water Board (WRAS) Compliant - All our pass through dishwashers have 'Type AB' air gaps which completely prevents any dirty water from going back into the mains water supply (an essential and legal requirement).
• Continuous Hood Clean System - Ensures the interior of the hood is hygienically clean at all times
• Liquid Crystal Display
• User friendly
• Colour Coded Display:
  Amber Light (flashing) - Machine is heating up
  Green Light - Machine ready
  Blue Light - Machine is in cycle.
• Dimensions (mm): 630 (W) x 1890-1960 open / 1470-1520 closed (H) x 720 (D)
• Rack Dimensions (mm): 500 x 500

Benefits:

• Easy to Clean - Easily removable components, a continuous hood clean system and an automatic self-drain and clean down program assists operators during regular cleaning.
• Eco Friendly - 28 litre wash tank for efficient usage and minimal running costs.
• Continuous Hood Clean System - Ensures cleaner water for longer periods and reduces water and chemical consumption.
• Primary and Secondary Protective Filter System - Allows for full coverage of the wash tank, preventing any food waste or objects from entering the wash tank water and clogging the machine up. As these filters are in two parts, they can easily be removed when cleaning the machine.
• Removable Basket Guides - Basket guides can easily be removed to give full access to the inside of the machine when cleaning , meaning that there are no areas where dirt can collect and ultimately effect the machines cleaning performance.
• Temperature Interlock - Guarantees Hot Rinse - The temperature interlock is a safety feature that ensures the rinse water is at the correct temperature before starting the rinse cycle. This ensures that the machine is fully sanitising the dishes and ultimately giving the best results possible.

Specifications:

• Electrical

  Standard Configuration

  Operating voltage: 380-415V / 3N~/50Hz

  Total Connected Load: 6.84kW

  Optional 1 Phase Configuration

• Power Requirements: 6.9kW/ 20 AMP/ 3 Phase

Warranty: 12 Months

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
