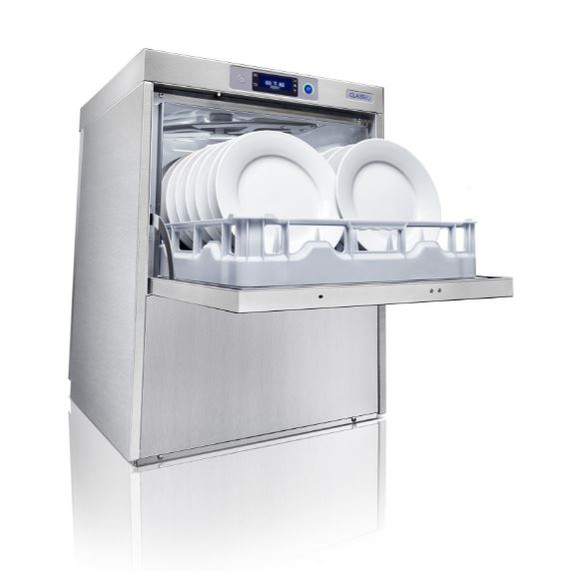

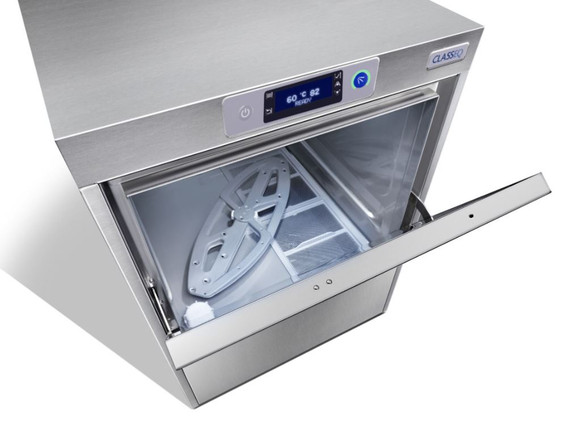

Classeq C500 Undercounter Glasswasher/ Dishwasher

Classeq C500 Undercounter Glasswasher/ Dishwasher

**To celebrate the launch of the new range, Classeq is offering a $100 CASH BACK on all orders until the end of the year. T&C's apply, please ask us for further information.**

The new Classeq Undercounter range combine maximum efficiency, pure lines and the cleaning power to shine bright in the busiest kitchens and bars.

Simple Choice - One model level with all the features you need. Just choose the size, power and optional integrated water softener.

Simple Set Up - Commissioned on install as a glass or dishwasher in minutes.

Simple Use - Press on. Press wash. Watch the display for notifications and troubleshooting.

Simple Cleaning - Simple click in, click out wash arms, double filtration system, and moulded basket rails all aid simple cleaning.

Simple App - New bluetooth app for operators and service technicians. Access user guides, machine settings, monitor performance data and service information.

Simple Servicing - The repositioning of key parts make servicing and maintenance quicker. Reducing maintenance costs throughout the life of the machine.

Standard Features:

• Colour coded display
• Reduced rinse water consumption
• Deep clean mode and refresh cycle
• Optional audible alarm
• Energy saving standby mode
• Drain pump, rinse booster pump, detergent and rinse aid pumps
• Bluetooth connectivity
• Double skinned door and cabinet to reduce noise and limit heat loss
• Hygiene and service reminders
• Three power options: 15A, 30A Single Phase and 15A Three Phase

The C500 can be specified with an integral water softener, an essential addition when installed in medium or hard water areas.

Each C500 machine includes two 500 x 500 baskets: one for plates with a small cutlery holder and one for glasses with three inserts.

Capacities and Performance:

Glasses per rack: 25

Plates per rack: 18

Wash programmes - Glass: 1.5 & 2 min. cycles

Wash programmes - Dish: 2,3 & 5 min. cycles

Theoretical max. racks per hour - Glass: 40

Theoretical max. racks per hour - Dish: 30

Wash tank capacity: 15 litres

Rinse tank capacity: 6.5 litres

Wash temperature: 60˚C

Rinse temperature - Glass: 70˚C

Rinse temperature - Dish: 82˚C

Water consumption per cycle: 2.75 litres

External Dimensions: 570mm D x 460 mm W x 750 mm H

Hydraulics Specification:

Water supply connection: G3/4” (3/4”BSP)

Required water pressure min/ max: 1-10 bar

Incoming water temperature min/ max: 4°C/55°C

Drain size: 40mm diam.

Maximum drain height (from machine base): 600 mm

Optional integrated water softener: Yes

Electrical Specifications:

15 Amp Plug - 1 Phase

Amps required 15 A (1 Phase)

Standard operating voltage: 220-240v/1N~/50Hz

Total connected load: 2.5 kW

30 Amp - 1 Phase

Amps required 30 A (1 Phase)

Standard operating voltage: 220-240v/1N~/50Hz

Total connected load: 6.5 kW

15 Amp Plug - 3 Phase

Amps required 15 A (3 Phase)

Standard operating voltage: 3800-415v/3N~/50Hz

Total connected load: 6.5 kW

Country of Origin: Britain

Warranty: 2 Years on Parts and Labour

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
