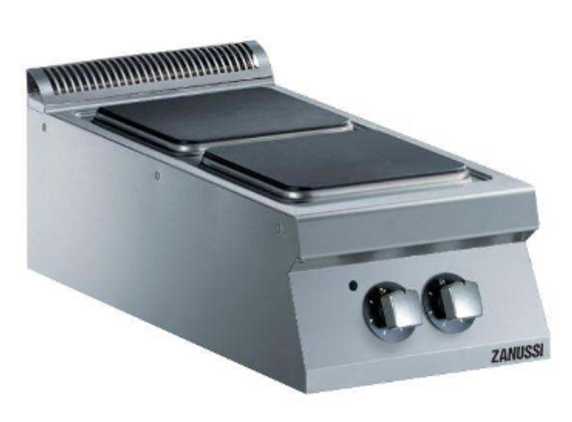

Zanussi EVO900 392039 2 Hot Plate Cooktop
The Zanussi EVO900 392039 is a 2 Hot Plate Cooktop designed for countertop installation, suitable for mounting on open base cupboards, bridging supports, or cantilever systems. Featuring two 4 kW square cast-iron hot plates hermetically sealed to the one-piece top. Exterior panels of unit in stainless steel with Scotch Brite finish. Extra strength work top in heavy duty 2 mm stainless steel. Right-angled side edges to allow flush-fitting junction between units.
Main Features:
• Unit to be mounted on open base cupboards, bridging supports or cantilever systems.
• The two 4kW cast-iron plates are hermetically sealed to the one-piece top. Hot plates with a power of 4kW for each plate.
• The special design of the control knob system guarantees against water infiltration.
• IPX5 water protection.
• Top configuration allows installation on ambient base only (not possible to install on refrigerated nor freezer base).
Construction:
• All exterior panels in Stainless Steel with Scotch Brite finishing.
• AISI 304 stainless steel worktop, 2mm thick.
• Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.
• Unit is 900mm deep to give a larger working surface area.
Specifications:
Electric:
Supply Voltage: 380-400 V/3N ph/50/60 Hz
Total Watts: 8 kW
Key Information:
Front Plates Power: 4-0 kW
Back Plates Power: 4 kW
Front Plate Dimensions: 300 x 300 mm
Back Plate Dimensions: 300 x 300 mm
Net Weight: 35 kg
Shipping Weight: 43 kg
Shipping Height: 520 mm
Shipping Width: 460 mm
Shipping Depth: 1020 mm
Shipping Volume: 0.24 m³
Certification Group: EH92T
Please note if this appliance is set up next to or against temperature sensitive furniture or similar, a safety gap of approximately 150 mm should be maintained or some form of heat insulation fitted.
Country of Origin: Italy
Warranty: 24 Months Parts & Labour
N.B Image is for illustrative purposes only. Specifications are subject to change without notice.
