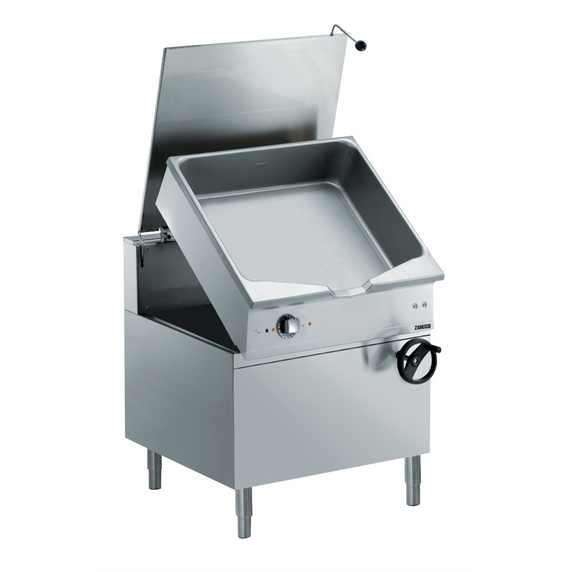

Zanussi 392423 EVO900 - Gas Bratt Pan 80L with Duomat Bottom

About Zanussi 392423 EVO900 - Gas Bratt Pan 80L with Duomat Bottom

The Zanussi EVO900 392423 is an 800mm Tilting Bratt Pan designed for versatile cooking methods like sautéing, poaching, steaming, boiling, stewing, and damp cooking. It features a Duomat cooking surface for wet and dry cooking, a double-skin well and lid to reduce heat dispersion, and IPX5 water resistance certification.

Main Features:

• Actual cooking temperature setting through adjustable thermostat.

• Manual tilting mechanism to facilitate pan emptying.

• Smooth large surfaces, easy access for cleaning.

• Double–skin well and lid to reduce heat dispersion.

• Lid is double-lined, insulated in 20/10 Stainless steel.

• IPX5 water resistance certification.

• Energy input controlled by energy regulator.

• The special design of the control knob system guarantees against water infiltration.

• Bratt pan ideal for sautéing, poaching, steaming, boiling, stewing and damp cooking.

• Duomat cooking surface allows to perform wet and dry cooking alternatively.

Construction:

• All pan internal surfaces round and polished for better hygiene.

• All exterior panels in Stainless Steel with Scotch Brite finishing.

• Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.

• Burners in AISI 441 against corrosion and thanks to a high strength yield, are resistant to high temperature.

• Burners in chrome plated steel with flame failure device, optimized combustion and piezo ignition with electronic flame control.

• Cooking surface with Duomat bottom: a 10 mm-thick alloy obtained from the combination of 2 different stainless steels for better thermal stability and corrosion resistance.

• Usable capacity of the well 66 litres.

Sustainability:

• Heat-insulated: limited heat radiation and low energy consumption.

Specifications:

Gas:

Gas Power: 21 kW

Gas Type Option: LPG & Natural Gas - please specify your preference when ordering.

Gas Inlet: 1/2"

Natural gas - Pressure: 7" w.c. (17.4 mbar)

LPG Gas Pressure: 11" w.c. (27.7 mbar)

Key Information:

Cooking Surface Depth: 565mm, Width: 680 mm, Thickness: 10 mm

Cooking Well Height: 130 mm

Product Width: 800 mm

Product Depth: 900 mm

Product Height: 850 mm

Well Capacity, Max: 80 lt

Working Temperature MIN: 80°C

Working Temperature MAX: 300°C

Net Weight: 150 kg

Shipping Weight: 159 kg

Shipping Height: 1080 mm

Shipping Width: 1020 mm

Shipping Depth: 880 mm

Shipping Volume: 0.97 m³

Please note: No clearance is needed on rear sides of unit if wall is of non combustible type. If wall is combustible, minimum 50 mm wall clearance should be maintained.

Country of Origin: Italy

Warranty: 24 Months Parts & Labour

N.B Image is for illustrative purposes only. Specifications are subject to change without notice.
