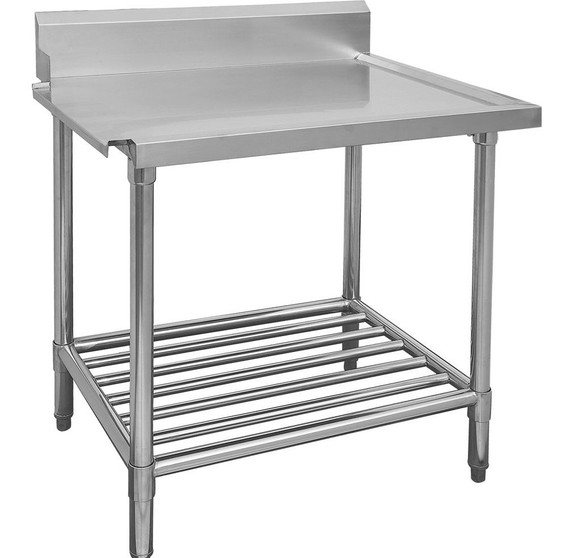

WBBD7-1200L/A All Stainless Steel Dishwasher Bench Left Outlet
About WBBD7-1200L/A All Stainless Steel Dishwasher Bench Left Outlet
**Festive Season Mega Sale valid until 20th December**
All Stainless Steel Dishwasher Bench Left Outlet
1200mm wide
This dishwasher bench is one of the best quality benches in all of Australia. Practical, reliable and cost effective idea for any kitchen.
• 700 mm deep × 900 mm high
• specially designed for quick & simple assembly
• come with instruction manual & tools
• supplied flat-packed for ease of transport
• 4 legs per bench - 2100 & 2400 mm wide benches have 6 legs
• 1.2 mm S/S
Splashbacks
• Stainless Steel backed • 180 mm high; 30 mm thick
• bevelled • fully enclosed
Legs
• 1.2 mm S/S; 42 mm Ø
• fully adjustable S/S polished disc feet that match the legs perfectly
• castor kits available (lockable)
Benchtops
• 1.2 mm material; SUS304 (18/8)
• lined with XPS board, 15 mm thick & S/S panel
• special S/S ‘U’ channel reinforcements under
- as the bench size increases so does the number of channels
Load ratings:
600mm wide, 240kg
900mm wide, 280kg
1200mm wide, 320kg
1500mm wide, 360kg
1800mm wide, 400kg
2100mm wide, 440kg
2400mm wide, 480kg
Note:
LEFT side sink inlet bench - When facing the bench the dishwasher inlet & sinks are on the left side.
RIGHT side sink inlet bench - When facing the bench the dishwasher inlet & sinks are on the right side.
Warranty: 2 Years Parts Only
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
