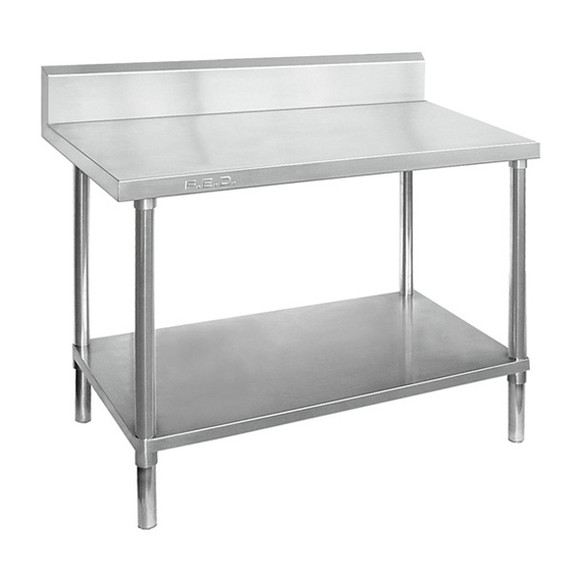

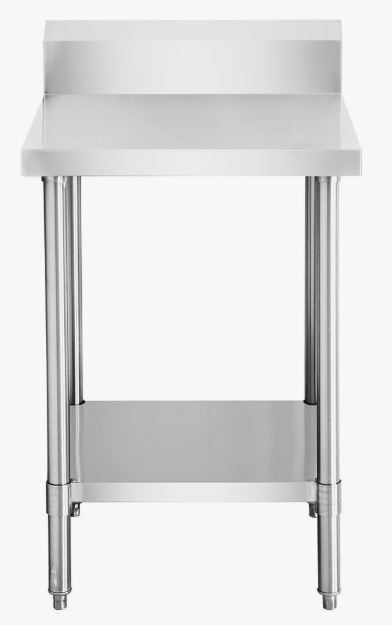

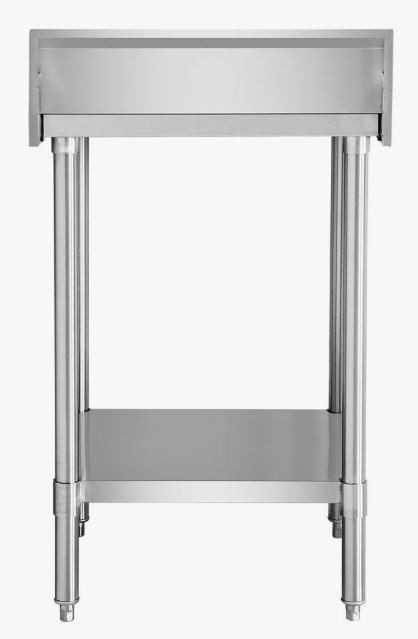

WBB7-0450/A Workbench Infill with Splashback

WBB7-0450/A Workbench Infill with Splashback

450mm Wide

Free optional leg brace instead of solid shelf; please specify leg brace on purchase order if required
OPTIONAL DRAWERS AVAILABLE; - Please contact us

• 700 mm deep × 900 mm high
• Specially designed for quick & simple assembly
• Comes with instruction manual & tools
• Supplied flat-packed for ease of transport
• 4 legs per bench - 2100 & 2400 mm wide benches have 6 legs
• Locking drawers available*

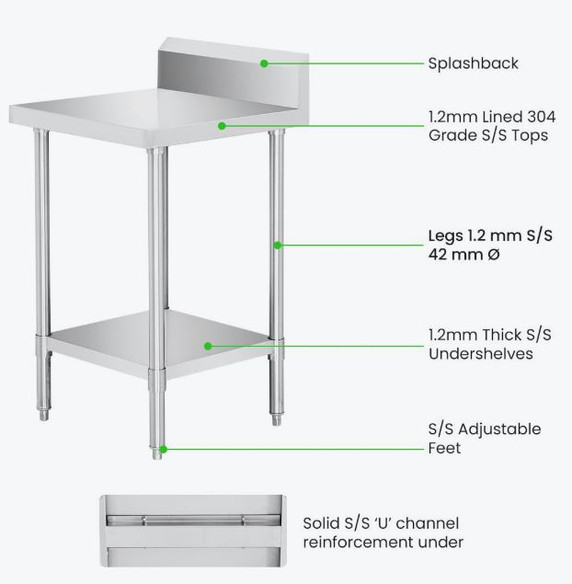

Legs

• 1.2 mm S/S; 42 mm Ø
• Adjustable S/S legs
• Optional: Polished disc feet (Bolt Down) which matches the leg perfectly is available
• Optional: Castor kits available (lockable)

Benchtops

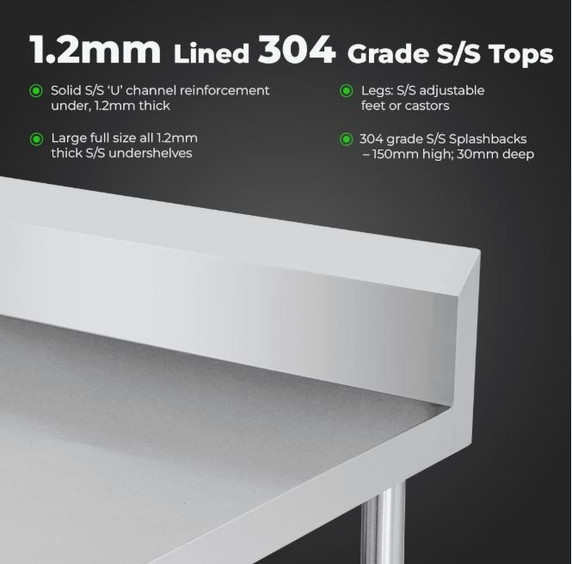

• 1.2 mm material; SUS304 (18/8)

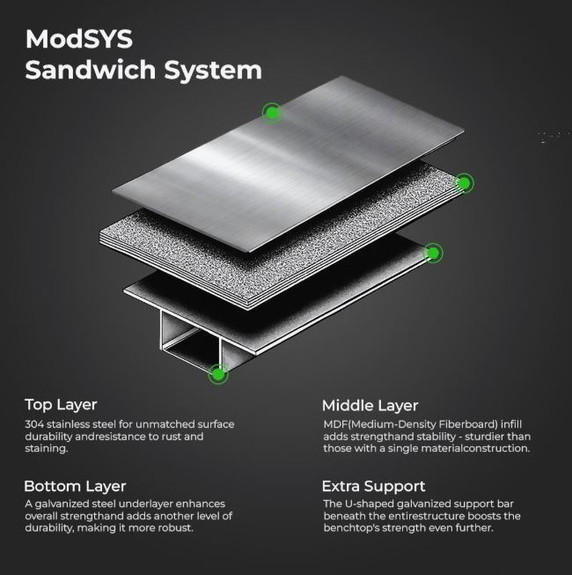

• Lined with XPS board, 20 mm thick & S/S panel

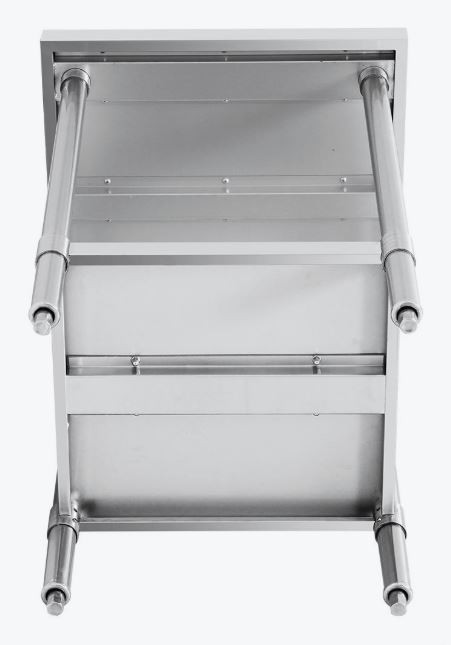

• Special S/S ‘U’ channel reinforcements under
  - As the bench size increases so does the number of channels

Undershelves

• Height of shelf is fully adjustable, also an extra shelf can be added
• 1.2 mm S/S
• Special ‘U’ channel reinforcements under to suit the bench type & size, and as the bench size increases so does the ‘U’ channel width; S/S 1.2 mm thick

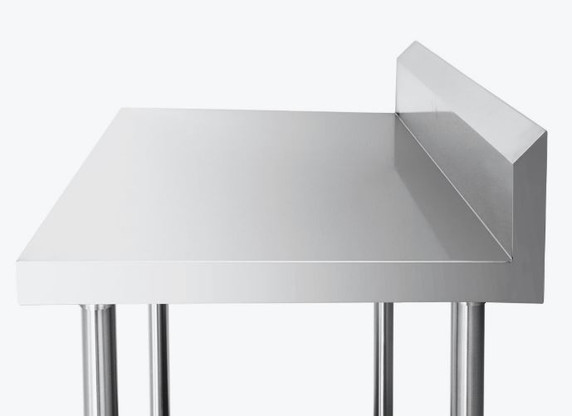

Splashbacks

• Stainless steel backing
• All S/S lined & bevelled
• 150 mm high; 30 mm thick

Load ratings:

• 600mm wide, 240kg
• 900mm wide, 280kg
• 1200mm wide, 320kg
• 1500mm wide, 360kg
• 1800mm wide, 400kg
• 2100mm wide, 440kg
• 2400mm wide, 480kg

Warranty: 2 Years Parts only

N.B Image is for illustrative purposes only. Specifications are subject to change without notice.
