LUUS YCA-1 Auto Refill Steamer - 1 Mongolian Burner

LUUS YCA-1 Auto Refill Steamer - 1 Mongolian Burner

Ideal for high volume dumpling/ dim sum steaming

Key Features:

• Incredible 800mm space saving depth

• Powerful Mongolian burner for maximum steam output

• Internal heat exchanger for maximum efficiency

• Automatic water refill mechanism for easy operation

• 7 hole steamer plate suitable for bamboo baskets

• Durable Zinc-aluminium Alloy burner handle

• 304 grade high quality stainless steel panels

• Interchangeable Rice Roll attachment (optional extra)

• 24 month ‘Platinum Warranty’

• Easy to clean and service

Compact Auto-Refill Yum Cha Steamer

• 123 mj 32 jet Mongolian burner with piezo, pilot & FFD

• In-built auto-refill mechanism with stainless steel float

• Four internal 304 stainless steel heat exchange tubes

• 1.5mm 304 stainless steel water tank

• 1.5mm 304 stainless 7 hole steamer plate

• Front gutter design for easier cleaning

• Zinc-aluminium Alloy burner handles

Overall Construction

• Heavy duty construction

• 1.5mm 304 stainless steel deck

• Splashback 1.2 mm 304 stainless steel

• Front cover, door and hob 1.2mm 304 stainless steel

• Side panels 0.9mm 304 stainless steel

• Stainless steel legs with 55mm height adjustment range

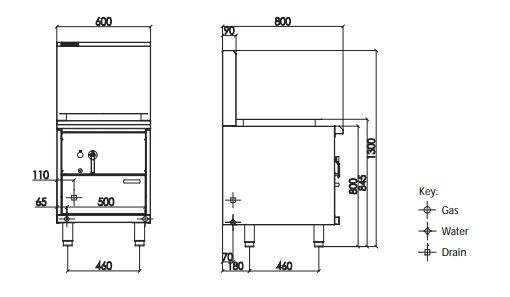

Dimensions

• 600mm x 800mm x 1300mm H

• Working height 845mm

• Weight 95kg

• Packed dimensions 650mm x 900mm x 1470mm H

• Packed weight 115kg

Connections

• Gas 3/4” BSP male

• Gas 65mm from left, 70mm from rear, 160mm to floor

• Supplied with gas regulator (specify Nat or LP on order)

• Water inlet 1/2” copper tube

• Water 35mm from right, 70mm from rear, 160mm to floor

• Drain 1 3/4” tube

• Drain 110mm from left, 70mm from rear, 305mm to floor

Cleaning & Servicing

• Easy access to all parts & components from front

N.B Images are for illustrative purposes. Specifications are subject to change without notice.
