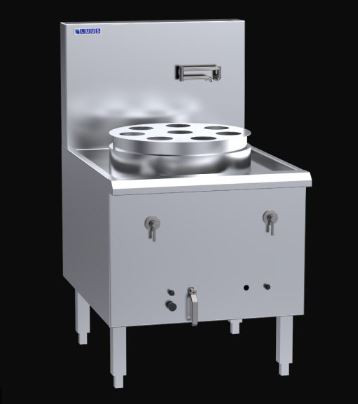

LUUS YC-1 Yum Cha Steamer - 1 Mongolian Burner

About LUUS YC-1 Yum Cha Steamer - 1 Mongolian Burner

Powerful Mongolian burner for maximum steam output.

Key Features:

• 7 hole steamer plate suitable for bamboo baskets

• Water cooling system to preserve unit longevity

• Cast iron ring with Fiberfrax insulation

• Durable Zinc-aluminum Alloy burner handle

• Laundry arm controlled by quarter turn lever

• 304 grade high quality stainless steel panels

• 15 month ‘Platinum Warranty’

• Easy to clean and service

Steamer

• 115mj 32 jet Mongolian burner with piezo, pilot & FFD

• Water deck cooling system

• 1.5mm 304 stainless steel 7 hole steamer plate

• 1.2mm 304 stainless steel pot & skirting

• Water deck cooling system

• Quarter turn water control lever

• Rear laundry arm with front panel controls

• Front gutter design for easier cleaning

• Zinc-aluminium Alloy burner handle

Overall Construction

• Welded steel frame construction

• Cast iron ring with Fiberfrax Durablanket insulation

• Double flanged watertight gasket seal

• Rear flue system to aid combustion

• 1.2mm 304 stainless steel deck, front cover & splashback

• 0.7mm 304 stainless steel side panels and undertrays

• 10mm ceramic insulation board under top deck

• 25mm Fibertex Rockwool insulation in front & side panels

• 38mm stainless steel tube legs with adjustable feet

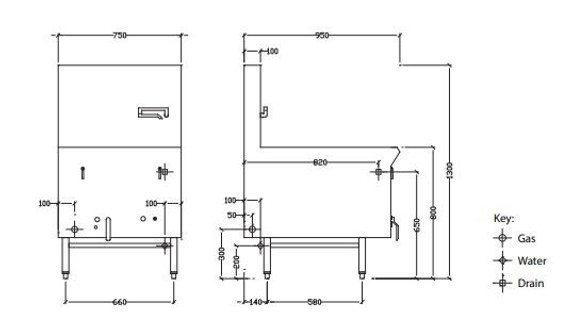

Dimensions

• 750mm x 950mm x 1300mm H

• Working height 800mm

• Weight 112kg

• Packed dimensions 830mm x 1025mm x 1460mm H

• Packed weight 142kg

Connections

• Gas 3/4” BSP male

• Gas 100mm from left, 50mm from rear, 300mm from floor (regulator connected inside front cover)

• Supplied with gas regulator (specify Nat or LP on order)

• Water inlet 1/2” copper tube

• Water 100mm from right, 100 mm from rear, 200mm floor

• Drain 2” BSP male

• Drain 100mm from right, 130mm from front, 650mm floor

Cleaning & Servicing

• Easy access to all parts & components from front

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
