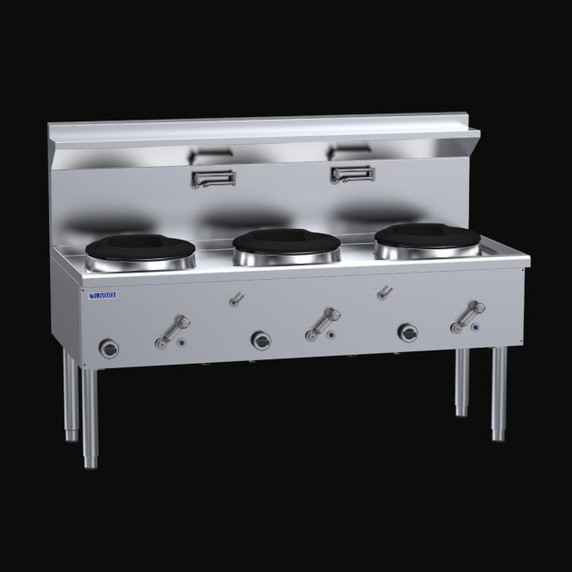

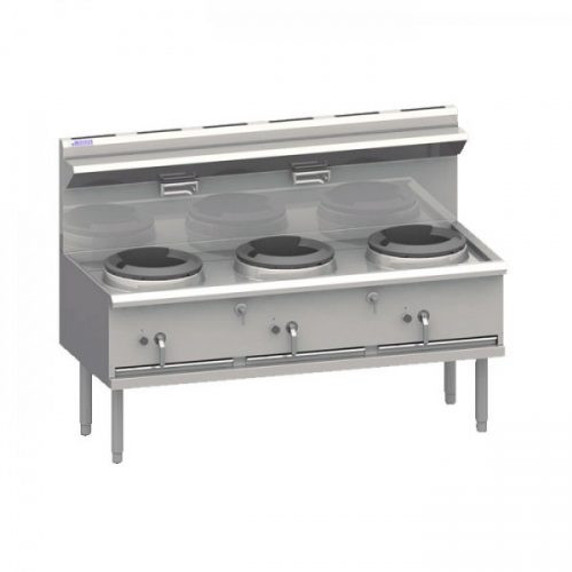

LUUS WZ-3C Compact Waterless Wok - 3 Chimney Burners

LUUS WZ-3C Compact Waterless Wok - 3 Chimney Burners

Performance meets style in an incredibly compact 800mm deep unit! Ideal where kitchen space is a premium. These feature packed WZ series woks are air cooled, have a one-piece pressed deck, 110mj chimney burners and are available in one, two and three hole configurations with optional side burners.

Three hole wok with Chimney burners as standard. Compact 800mm depth, air cooling, pressed ring, front gutter and quarter turn tap folding laundry arm operation.

Features:

• Space saving 800mm total unit depth

• 333mm wok ring suitable for standard sized woks

• Chimney burners ideal for high heat/fast stir frying

• Uses up to 90% less water than Traditional Woks

• Air gap design eliminates need for water cooling

• Machine pressed deck to prevent grime catchment

• Concealed ring lip prevents water from entering air gap

• Removable, vented rear condiment shelf

• Modular design to suit multiple WZ wok units

• Optional Duckbill and Dual Ring Burners no additional cost

• 24 month ‘Platinum Warranty’

• Easy to clean and service

Waterless Wok

• 110 mj 24 jet chimney burners with pilot & FFD

• 333mm diameter standard size cast-iron wok ring

• Air gap cooling system

• Quarter turn water control lever

• Folding rear laundry arm with front panel controls

• Wider front gutter design for easier cleaning

• Internal front heat shield panel

• Supplied with waste strainer

• Zinc-aluminium Alloy burner handles

Overall Construction:

• Heavy duty construction

• Full skirt, enamelled cast-iron rings

• 1.5mm 304 stainless steel one-piece pressed deck

• 0.9mm 304 stainless steel condiment shelf

• Splashback and front cover 1.2 mm 304 stainless steel

• Integrated hob 1.5mm 304 stainless steel

• Side panels 1.2mm 304 stainless steel

• Undertrays 0.9mm stainless steel

• Stainless steel removable legs

• 30mm height adjustment range

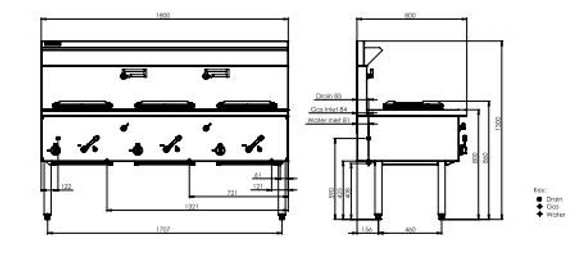

Dimensions:

• 1800mm x 800mm x 1300mm H

• Working height 800mm

• Weight 240kg

• Packed dimensions 1850mm x 900mm x 1470mm H

• Packed weight 280kg

Connections

• Gas 3/4” BSP female

• Gas 121/721/1321mm from right, 84mm from rear, 425m to floor

• Supplied with gas regulator (specify Nat or LP on order)

• Water inlet 1/2” copper tube

• Water 61mm from right, 81mm to rear, 408mm to floor

• Drain 1 3/4” BSP male, drain outlet 2”

• Drain 122mm from left, 83mm from rear, 590mm to floor

Cleaning & Servicing

• Easy access to all parts & components from front

Nat Gas: 330 mj

LP Gas: 330 mj

**Please advise gas type preferred when ordering.

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
