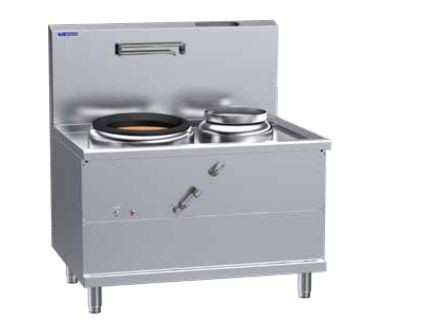

LUUS WV-1P1A Fo San Wok - 1 Side Pot & 1 Air-Blast Burner
Inspired by the fast-paced kitchens of Hong Kong, ‘Fo San’ is Cantonese for volcano, representing the raw heat and power generated by the unique burner set-up.
Single hole wok with fan forced stainless steel 145mj Air Blast Burner and pot (LHS). Front gutter design, fire-brick lined combustion chamber, rear flue system, cast-iron ring, internal front heat shield panel and quarter turn tap.
Features:
• Refined 11th generation Luus superwok design
• Fan-forced burner generates greater output compared to some standard wok burners on the market
• Intense heat and focused flame targets the wok centre and provides unmatched stir frying speeds
• Luus’ unique burner & pilot set up is the most effective design on the market at preventing grease/water blockages
• Compact 900mm space saving overall unit depth
• Natural cooling via insulation and rear flue design
• Entirely redesigned electrical system with faster ignition, auto re-ignition and greater reliability.
• 24 month ‘Platinum Warranty
Fo San Wok:
• 145 mj Air-Blast Burner with 3 mj pilot & FFD standard
• Electronic auto-ignition switch and burner reset function
• Fan-forced stainless steel burner easy-to-clean design
• External pilot position most effective at avoiding blockages
• Fire-brick lined combustion chamber and ceramic base
• Rear flue system provides effective & efficient combustion
• Quarter turn water control lever
• Folding rear laundry arm with front panel controls
• Front gutter design for easier cleaning
• Internal front heat shield panel
• Supplied with waste strainer
• Zinc-aluminium Alloy burner handles
• Ergonomically designed burner handle can be repositioned at 45Ëš orientations to match personal preference
Overall Construction:
• Heavy duty construction
• Robust, full skirt, 355mm cast-iron ring
• 1.5mm 304 stainless steel top deck
• Splashback 1.2 mm 304 stainless steel
• Front cover and hob 1.2mm 304 stainless steel
• Side panels 0.9mm 304 stainless steel
• Stainless steel removable legs
• 55mm height adjustment range
• 1.5mm 304 stainless steel base panel
• One-piece hob and deck

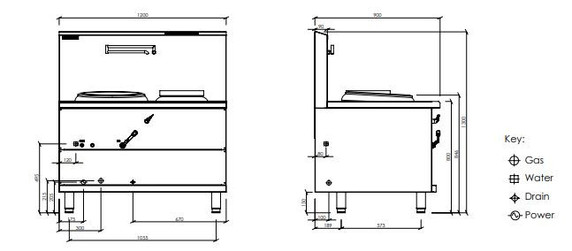

Dimensions:
• 1200mm W x 900mm D x 1300mm H
• Working height 800mm
• Weight 200kg
• Packed dimensions 1250mm x 950mm x 1470mm H
• Packed weight 230kg
Connections:
• 3/4" BSP Male
• WV-1P1A: Gas 750mm from left, 100mm from rear, 215mm to floor, Water 220mm from right 60mm to rear, 205mm to floor, Electrical input located 625mm from left, 205mm to floor
• Gas regulator built-in to gas train
• Water inlet 1/2” tube with check valve
• Drain 2” pipe
• Drain 120mm from left 80mm from rear, 495mm to floor
• Electrical input rated at 220-240V, 10A, 50Hz & 150W
• Length of cable from rear is 600mm
Cleaning & Servicing:
• Front gutter design and waste strainer for easier cleaning
• Top surface and skirting is easy to clean from above
• Burner removable and accessible from above
• Burner injector, electrode and flame probe accessible
• Control box accessible via lower front cover
• Drain and tap accessible by removing upper front cover
• Gas train, air-line, fan and burner accessible by removing front covers
Nat Gas: 145mj
LP Gas: 145 mj
**Please advise preferred gas type when ordering.
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
