LUUS SCM-120 Steam Cabinet - 1200 Wide 3 Deck

LUUS SCM-120 Steam Cabinet - 1200 Wide 3 Deck

Ideal for high-volume large-scale Asian style steaming. 1200 wide 3 deck steam cabinet. Includes ultra-efficient heat exchange, flame failure, auto tank refill, pressure release valve and rotary door.

Key Features:

• 885mm depth body that will suit most restaurant

• Powerful “flame thrower” burner design for clean combustion

• Internal heat exchanger for maximum efficiency

• Automatic water refill mechanism for easy operation

• Three stop rotary door lock system

• 304 grade high quality stainless steel panel

• 1.2mm 201 stainless steel body

• 24 month ‘Platinum Warranty’

• Easy to clean and service

Auto-Refill Steam Cabinet

• 200 mj flame thrower burner with electrical piezo pilot & FFD

• In-Built auto-refill mechanism with stainless steel float

• Insulated heat exchange system

• Pressure release valve installed

• Stainless steel external construction

Overall Construction

• Heavy duty frame construction

• Polyester compartment handles

• Stainless steel racks

Dimensions

• 1200mm W x 900mm D x 2100 mm H

• Weight 385kg

• Packed dimensions 1300mm x 1000mm x 2100mm H

• Packed weight 405kg

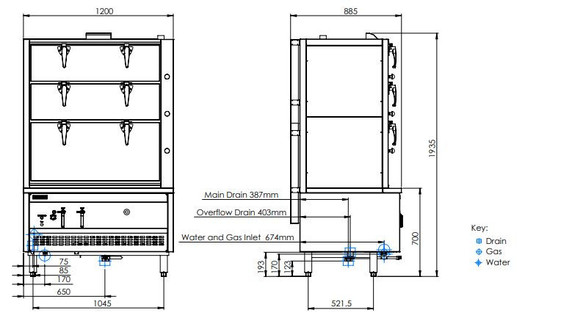

Connections

• Gas 3/4’’ BSP Female

• Gas 170mm from left, 674mm from rear, 193mm from floor

• Supplied with gas regulator (please specify Nat or LPG on order)

• Water inlet 1/2 stainless steel tube

• Water 85mm from left, 674mm from rear, 170mm from floor

• 15mm non-return isolation valve

• Main Drain 1-3/4’’ BSP Female

• Main Drain 500mm from left, 387mm from rear, 123mm from floor

• Overflow Drain 75mm from left, 403mm from rear, 193mm from floor

Cleaning & Servicing

• Easy access to all parts & components from front

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
