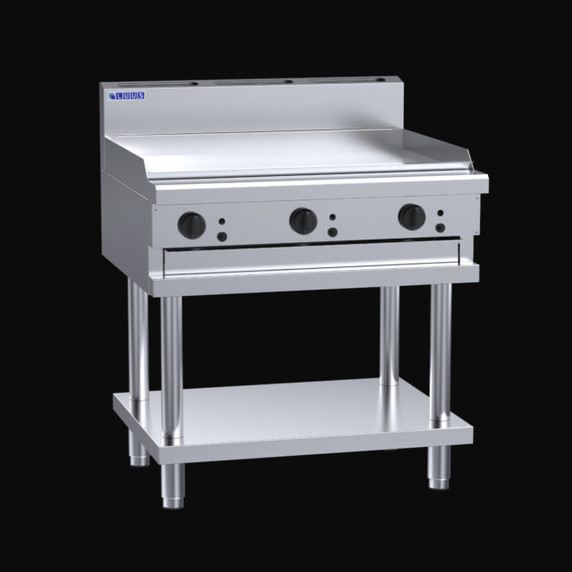

LUUS CS-9P - 900mm Griddle
900mm wide griddle plate in a compact 800mm deep body. Chargrill option is available, please ask us for a quote. 21mm mild steel plate with piezo ignition. Available as a benchtop or freestanding with an undershelf storage area.
Features:
• 21mm thick mild steel griddle plate
• Chrome and ribbed plate finishes optional
• Hotplate and chargrill combinations - please contact us for a quote for the chargrill combination.
• Available freestanding or as a benchtop model
• Modular Professional series design
• 24 month ‘Platinum Warranty’
• Easy to clean and service
Griddle/ Hotplate:
• 18 mj burners with pilot, FFD and piezo ignition
• Variable flame control valve with low flame setting
• 21mm thick mild steel griddle plate
• Top weld sealed hotplate sections
• CS-9P plate: 890mm x 540mm; 0.48m2 cooking area
• 2mm 304 stainless steel splash guards
• Griddle oil bin 1.2mm stainless steel
Overall Construction:
• Heavy duty construction
• Welded 1.2mm 304 stainless steel front hob
• Front and side panels 0.9mm 304 stainless steel
• Splashback 1.2 mm 304 stainless steel
• Stainless steel legs with 55mm height adjustment range

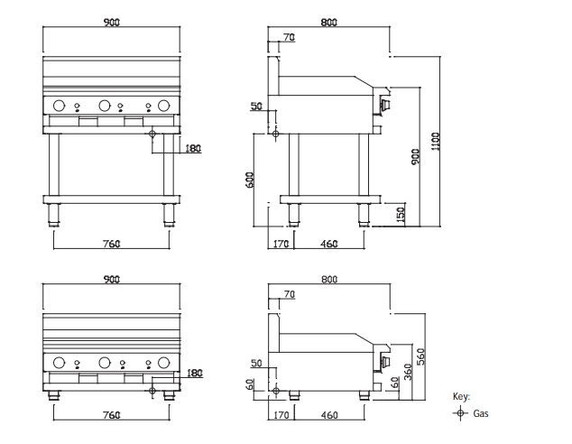

Dimensions:
• 900mm W x 800mm D x 1100mm H
• 900mm x 800mm x 560mm H (benchtop)
• Working height 900mm
• Weight 115kg
• Packed dimensions 940mm x 860mm x 1260mm H
• Packed weight 140kg
Connections:
• Gas 3/4” BSP male
• 180mm from right, 50mm from rear, 600mm from floor
• Benchtop model gas connection: 60mm from bottom
• Supplied with gas regulator (specify Nat or LP on order)
Cleaning & Servicing:
• Easy access to all parts & components from front
Nat Gas: 54 mj
LP Gas: 54 mj
** Please specify preferred gas type when ordering.
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
