LUUS CS-12P - 1200mm Griddle

About LUUS CS-12P - 1200mm Griddle

200mm wide griddle plate in a compact 800mm deep body. 21mm mild steel plate with piezo ignition. Available as a benchtop or freestanding with an undershelf storage area. Chargrill option is available, please ask us for a quote.

Features:

• 21mm thick mild steel griddle plate

• Chrome and ribbed plate finishes optional

• Hotplate and chargrill combinations

• Available freestanding or as a benchtop model

• Modular Professional series design

• 24 month ‘Platinum Warranty’

• Easy to clean and service

Griddle/ Hotplate:

• 18 mj burners with pilot, FFD and piezo ignition

• Variable flame control valve with low flame setting

• 21mm thick mild steel griddle plate

• Top weld sealed hotplate sections

• CS-12P plate: 1190mm x 540mm; 0.64m2 cooking area

• 2mm 304 stainless steel splash guards

• Griddle oil bin 1.2mm stainless steel

Overall Construction:

• Heavy duty construction

• Welded 1.2mm 304 stainless steel front hob

• Front and side panels 0.9mm 304 stainless steel

• Splashback 1.2 mm 304 stainless steel

• Stainless steel legs with 55mm height adjustment range

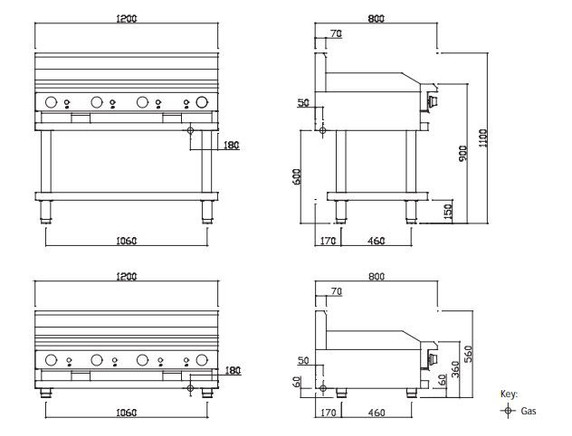

Dimensions:

• 1200mm W x 800mm D x 1100mm H

• 1200mm W x 800mm D x 560mm H (benchtop)

• Working height 900mm

• Weight 146kg

• Packed dimensions 1240mm x 860mm x 1260mm H

• Packed weight 176kg

Connections:

• Gas 3/4” BSP male

• 180mm from right, 50mm from rear, 600mm from floor

• Benchtop model gas connection: 60mm from bottom

• Supplied with gas regulator (specify Nat or LP on order)

Cleaning & Servicing:

• Easy access to all parts & components from front

Nat Gas: 72 mj

LP Gas: 72 mj

** Please advise preferred gas type when ordering.

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
