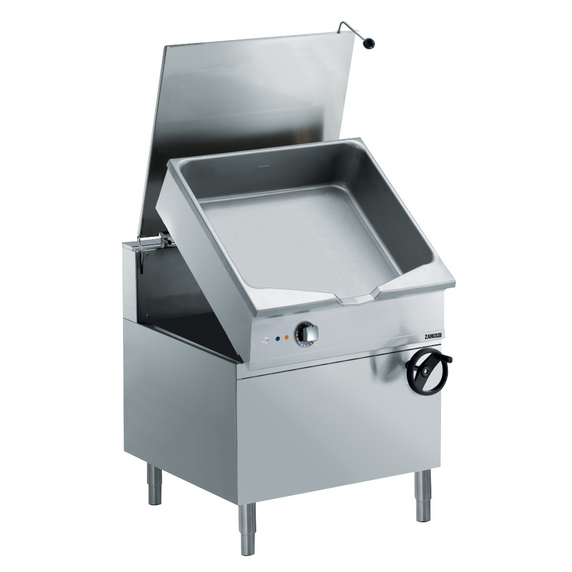

Zanussi EVO900 392416 800mm Tilting Bratt Pan
The Zanussi EVO900 392416 is an 800mm Tilting Bratt Pan designed for versatile cooking methods such as sautéing, poaching, steaming, boiling, stewing, and damp cooking.
It features a Duomat cooking surface for both wet and dry cooking, infrared heating elements mounted below the surface, and a double–skin well and lid to reduce heat dispersion. The pan has IPX5 water resistance certification and an adjustable thermostat for precise cooking temperature control. With a manual tilting mechanism for easy pan emptying, a well capacity of 66 litres, and a Duomat bottom for enhanced thermal stability and corrosion resistance, this bratt pan offers efficient and hygienic cooking. The Stainless Steel construction with Scotch Brite finishing and right-angled side edges ensures easy cleaning and seamless integration between units, eliminating gaps and potential dirt traps.
Main Features:
• Bratt pan ideal for sautéing, poaching, steaming, boiling, stewing and damp cooking.
• Duomat cooking surface allows to perform wet and dry cooking alternatively.
• Double–skin well and lid to reduce heat dispersion.
• Infrared heating elements mounted below the cooking surface.
• Lid is double-lined, insulated in 20/10 Stainless steel.
• IPX5 water resistance certification.
• Actual cooking temperature setting through adjustable thermostat.
• Energy input controlled by energy regulator.
• Manual tilting mechanism to facilitate pan emptying.
• Smooth large surfaces, easy access for cleaning.
• The special design of the control knob system guarantees against water infiltration.
Construction:
Cooking surface with Duomat bottom: a 10 mm-thick alloy obtained from the combination of 2 different stainless steels for better thermal stability and corrosion resistance.
• All pan internal surfaces round and polished for better hygiene.
• All exterior panels in Stainless Steel with Scotch Brite finishing.
• Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.
• Usable capacity of the well 66 litres.
Specifications:
Electric:
Supply voltage: 380-400 V/3N ph/50/60 Hz
Total Watts: 13 kW
Predisposed for: 380-400V 3N~ 50/60Hz 11.7-13kW
Key Information:
Cooking Surface Depth: 565 mm, Width: 680 mm, Height: 130 mm
Dimensions: 800mm W x 900 D x 850 H
Well Capacity, Max: 80 lt
Working Temperature MIN: 80°C
Working Temperature MAX: 300°C
Net Weight: 150 kg
Shipping Weight: 151 kg
Shipping Height: 1100 mm
Shipping Width: 1020 mm
Shipping Depth: 860 mm
Shipping Volume: 0.96 m³
Country of Origin: Italy
Warranty: 24 Months Parts and Labour
N.B Image is for illustrative purposes only. Specifications are subject to change without notice.
