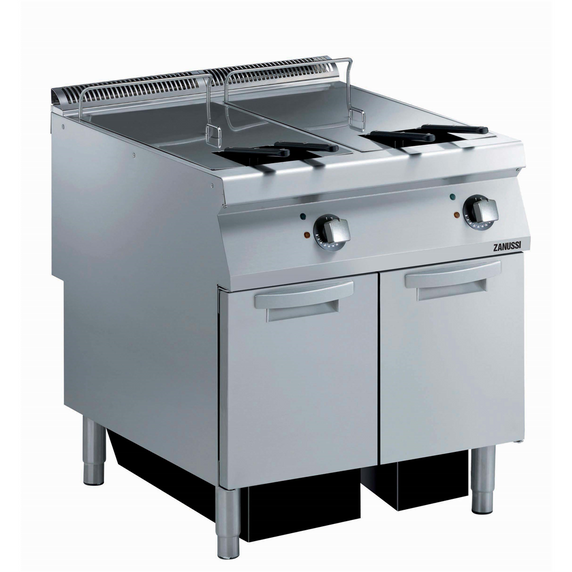

Zanussi EVO900 392338 800mm Twin Well Electric Fryer
The Zanussi EVO900 392338 is an 800mm Twin Well Fryer with two 23L wells and thermostatic regulation at up 185°C.
Featuring high efficiency external infrared heating elements (36kW) with innovative deflectors attached to the outside of the wells. Deep drawn V-Shaped wells. Oil drains through a tap into a container positioned under the wells. Height adjustable feet in stainless steel. Exterior panels in stainless steel. Worktop in 20/10, stainless steel. Right-angled side edges eliminate gaps and possible dirt traps between units.
Main Features:
• Deep drawn V-Shaped wells.
• Interior of wells with seamlessly laser-welded corners for ease of cleaning.
• External infrared heating elements with innovative deflectors applied to the well for ease of cleaning of the internal well and safe operations.
• Thermostatic regulation of oil temperature up to a maximum of 185°C.
• Overheat protection thermostat as standard on all units.
• All major compartments located in front of unit for ease of maintenance.
• IPX5 water resistance certification.
• The special design of the control panel offers a better guarantee against oil infiltration.
• Supplied as standard with 4 half size baskets and 1 right and left side doors for cupboard.
• Optional portable oil quality monitoring tool (code 9B8081) for efficient oil management.
Construction:
• All exterior panels in Stainless Steel with Scotch Brite finishing.
• Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.• Unit is 900mm deep to give a larger working surface area.
• Unit delivered with four 50 mm legs in stainless steel as standard.
Specifications:
Electric:
Supply voltage: 380-400 V/3N ph/50/60 Hz
Total Watts: 36 kW
Key Information:
Usable well dimensions (width): 340 mm, (height): 575 mm, (depth): 400 mm
Well capacity: 21 lt Min; 23 lt Max
Performance*: 75 kg hr
Thermostat Range: 105°C MIN; 185°C MAX
Net Weight: 115 kg
Shipping Weight: 125 kg
Shipping Height: 1080 mm
Shipping Width: 1020 mm
Shipping Depth: 860 mm
Shipping Volume: 0.95 m³
Please note if the fryer is set up next to or against temperature sensitive furniture or similar, a safety gap of approximately 150 mm should be maintained or some form of heat insulation fitted.
*Based on: ASTM F1361- Deep fat fryers
Country of Origin: Italy
Warranty: 24 Months Parts & Labour
N.B Image is for illustrative purposes only. Specifications are subject to change without notice.
