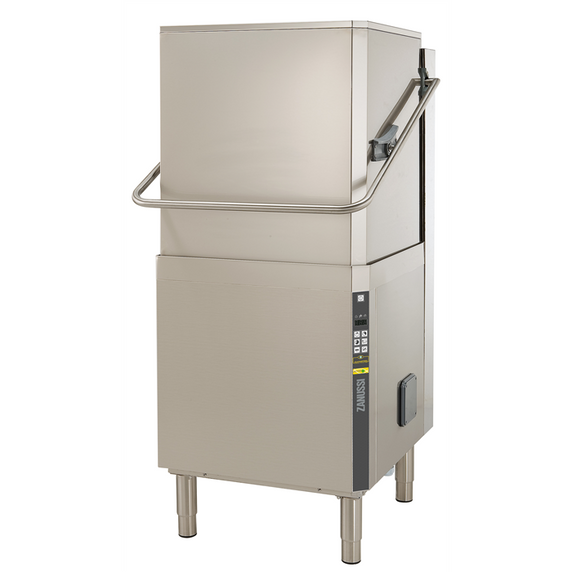

Zanussi 505109 Hood Type Dishwasher
Hood type dishwasher, with single skin hood, built-in detergent dispenser, rinse aid dispenser and drain pump, WRAS approved, 80r/h
Features:
• NSF/ANSI 3 and DIN 10512 compliant
• Maximum capacity per hour of 80 racks or 1,440 dishes (High productivity mode) easy to switch to 63 racks or 1.134 dishes (NSF/ANSI 3 mode) by pressing a button
• 45/84/150 seconds cycles (High productivity mode); 57/84/150 seconds (NSF/ANSI 3 mode)
• Built-in atmospheric boiler sized to raise incoming water to a minimum of 84 °C for sanitizing rinse. No external booster is required. Constant temperature of 84 °C throughout the rinsing cycle regardless of the network's water pressure.
• Unique temperature interlock guarantees required temperatures in both the wash and final rinse.
• Incorporated Soft Start feature to offer additional protection to more delicate items.
• Slanted wash arms and sloped ceiling to avoid detergent filled wash water dropping on clean dishes after the rinsing phase, thus guaranteeing ideal washing results.
• Cycle may be interrupted at any time by lifting the hood.
• Automatic self-cleaning cycle and self-draining vertical wash pump and boiler to avoid bacteria proliferation.
• State-of-the-art electronic controls with built-in programming, self-diagnostics for serviceability and automatic interior self-cleaning cycle.
• Built-in rinse aid and detergent dispenser with automatic initial and continuous cycle loading for perfect result while minimizing service and maintenance needs.
• Boiler power setting from control panel to facilitate technician's operation when reducing total installed power, thus avoiding the need of machine opening.
• Three phase electrical connection, convertible to single phase on-site.
• IP25 protection against water jet, solid objects and small animals (larger than 6 mm).
• The machine can be connected to cold water**
Construction:
• Heavy duty Stainless steel construction. Internal cavity as well as exterior panels are in 304 series Stainless steel
• Pressed tank in front position to facilitate cleaning
• Single skin hood supported by 3 springs to ensure smooth movement and guarantee operator safety
• Specially designed Stainless steel wash/rinse arms and nozzles provide superior cleaning action
• Revolving interchangeable Stainless steel wash/rinse arms above and below the rack, screw out for simple clean up
• Pre-arranged for on-site HACCP implementation and Energy Management device
• Element protection from dry fire and low water
• Unit to include drain, detergent and rinse aid dispenser pumps
Sustainability:
Water supply temperature*: 10-65 °C
Water consumption per cycle (lt)**: 2
Noise level: <68 dBA
* According to market standard, the productivity is declared at an inlet water supply temperature of 50°C . If the water is supplied at 65°C, the power can be reduced by 3 kW without any loss in productivity.
** When connected to cold water, the cycle time will be prolonged accordingly. The machine will have productivity per hour of 48 racks at 10°C supply temperature or 55 racks at 20°C supply temperature.
Included Accessories:
• 1 of Yellow cutlery container PNC 864242
• 1 of Basket for 18 dinner plates or 27 side plates (max. diam. 240 mm) PNC 867002
Packaging Dimensions: 920mm W x 780 D x 1,720 H
Electric:
Supply voltage: 400 V/3N ph/50 Hz
Convertible to: 230V 3N~; 230V 1N-50Hz
Default Installed Power: 9.9 kW
Reducible Installed Power:* 6.9 kW
Boiler Heating Elements Power:* 9 kW
Boiler Reducible To:* 6 kW
Electrical power max.: 12.9 kW
Tank heating elements: 3 kW
Wash pump size: 0.8 kW
Water:
Drain line size: 20.5mm
Inlet water supply pressure: 0.5-7 bar
Boiler Capacity (lt): 12
Tank Capacity (lt): 24
Key Information:
N° of cycles: 3
Duration cycle:* 45/84/150 sec.
Duration cycle - NSF/ANSI 3 compliant: 57/84/150 sec.
Racks per hour:* 80
Racks per hour - NSF/ANSI 3 compliant: 63
Dishes per hour:* 1440
Dishes per hour - NSF/ANSI 3 compliant: 1134
Wash temperature: 55-65 °C
Wash temperature - NSF/ANSI 3 compliant: 75 °C
Rinse temperature: 84 °C
Net weight: 106 kg
Air Emission:
Latent Heat: 500 W
Sensible Heat: 2000 W
N.B Image is for illustrative purposes only. Specifications are subject to change without notice.
