WBB7-0600/A Workbench with Splashback
About WBB7-0600/A Workbench with Splashback
**Festive Season Mega Sale valid until 20th December**
Free optional leg brace instead of solid shelf; please specify leg brace on purchase order if required.
OPTIONAL DRAWERS AVAILABLE; - Please ask staff for details.

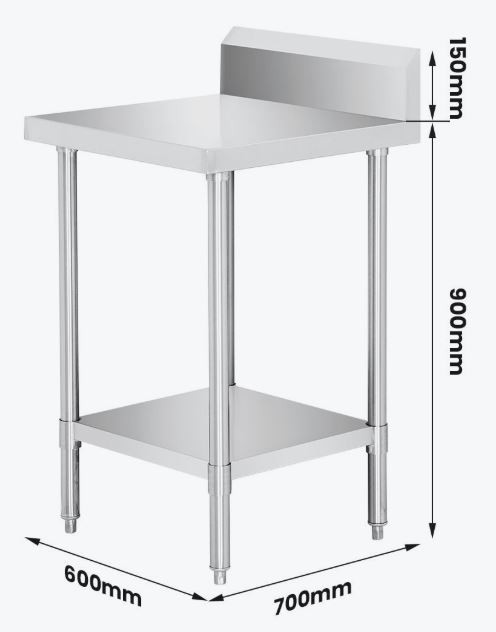

• 600mm Wide x 700 mm deep × 900 mm high
• Specially designed for quick & simple assembly
• Comes with instruction manual & tools
• Supplied flat-packed for ease of transport
• 4 legs per bench - 2100 & 2400 mm wide benches have 6 legs
• Locking drawers available*
Legs
- 1.2 mm S/S; 42 mm Ø
- Fully adjustable S/S polished disc feet that match the legs perfectly
- Castor kits available (lockable)

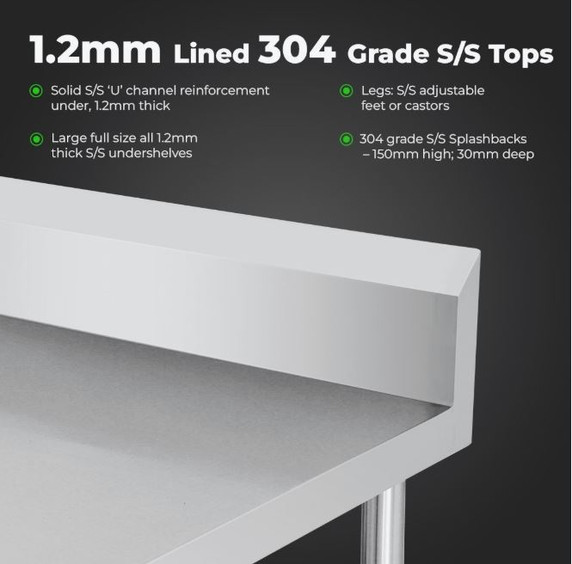

Benchtops
• 1.2 mm material; SUS304 (18/8)
• Lined with XPS board, 20 mm thick & S/S panel
• Special S/S ‘U’ channel reinforcements under
- As the bench size increases so does the number of channels
Undershelves
• Height of shelf is fully adjustable, also an extra shelf can be added
• 1.2 mm S/S
• Special ‘U’ channel reinforcements under to suit the bench type & size, and as the bench size increases so does the ‘U’ channel width; S/S 1.2 mm thick
Splashbacks
• Stainless steel backing
• All S/S lined & bevelled
• 150 mm high; 30 mm thick
• Fully enclosed & folded under top (not gal. or open)
Load ratings:
- 600mm wide, 240kg
- 900mm wide, 280kg
- 1200mm wide, 320kg
- 1500mm wide, 360kg
- 1800mm wide, 400kg
- 2100mm wide, 440kg
- 2400mm wide, 480kg
Warranty: 2 Years Parts only
N.B Image is for illustrative purposes only. Specifications are subject to change without notice.
