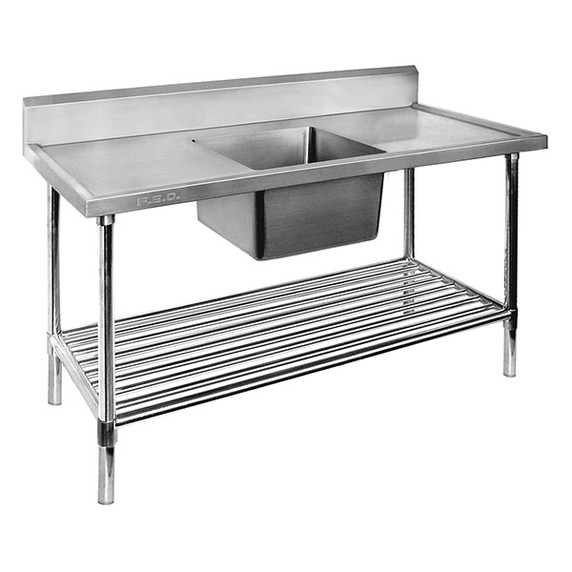

Single Centre Sink Bench & Pot Undershelf SSB6-1200C/A
About Single Centre Sink Bench & Pot Undershelf SSB6-1200C/A
Free optional leg brace instead of pot shelf, please specify leg brace on order if required.
- Bowl size 400mmW×400D×300H; 90 mm Ø drain hole
- 600 mm deep × 900 mm high
- Specially designed for quick & simple assembly
- Comes with instruction manual & tools
- Supplied flat-packed for ease of transport
- 4 legs per bench - 2100 & 2400 mm wide benches have 6 legs
- 1.2 mm S/S
- 15 mm wet edge
- Centre bowl positioning
- Bowls are fully welded, polished inside & out
- 90 mm Ø drain hole
Splashbacks
- Stainless Steel backed • 150 mm high; 30 mm thick
- Bevelled • fully enclosed
Legs
- 1.2 mm S/S; 42 mm Ø
- Fully adjustable S/S polished disc feet that match the legs perfectly
- Castor kits available (lockable)
Benchtops
- 1.2 mm material; SUS304 (18/8)
- Lined with XPS board, 15 mm thick & S/S panel
- Special S/S ‘U’ channel reinforcements under
- Ripple Surface
- As the bench size increases so does the number of channels
Pot Undershelves
-
1.2mm S/S (18/8)
-
Outer frame tubes: 38 Ø 1.2 mm tube
-
Inner tubes: 25 Ø 1 mm tube with 40 mm spacing
Warranty: 2 Years Parts only
N.B Image is for illustrative purposes only. Specifications are subject to change without notice.
