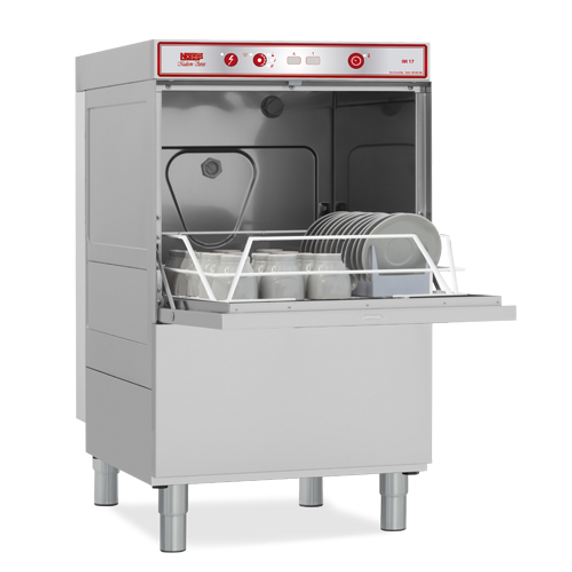

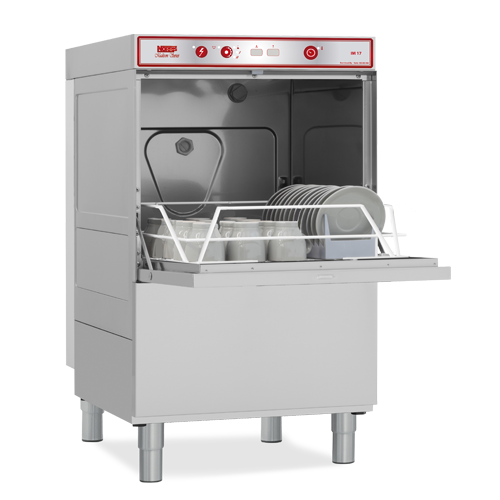

Norris Madison IM17 Commercial Glasswasher

Norris Madison IM17 Commercial Glasswasher

Get your kitchen running smoothly and efficiently with a commercial glasswasher that’s built to meet the high standards and demands of Australian kitchens. The Madison IM17 Glasswasher will exceed the expectations of your chefs or kitchen hands and more importantly, the overly attentive eye of your customers.

Norris understands that catering for the needs of your customers and running a busy kitchen is hectic enough without things going awry in the kitchen or while serving at the bar. They have worked towards making the task of managing the high-turnover of your dirty glassware effortless. In both the Australian-made Norris and imported Madison machines, glassware racks are easy to remove, stack and load – and quick 60 and 120-second wash cycles will enable you to keep up with customer demand even during peak hours.

The Madison IM17 is capable of washing up to 800 glasses per hour, quietly and effortlessly, providing you with peace-of-mind that your glasswasher will continue to run faultlessly regardless of demand, day after day. The easy to use electronic control system features a one-button and one-function operation with automatic detergent and rinse aid injection technology to ensure your glasses cleaned to perfection.

Over the last 60 years, Norris has built its reputation on quality and reliability; every dishwasher is meticulously constructed using quality components and materials, tested and inspected to ensure flawless operation and finish. This imported model provides similar qualities and your business will benefit from energy and water savings and reduced accidental breakages which occur through manual washing.

Why not experience the benefits of owning a Madison glasswasher, and speak with one of our consultants today, they will gladly guide you through what is likely to be one of the most beneficial investments you will make in your workplace.

Features:

• Warranty:1 year parts and labour, 3 years on the control board & cabinet

• 60, 120 second wash cycle options

• Recycle wash system, using 2L per cycle

• Pump out drain

• Up to 800 glasses per hour*

• Automatic detergent injection

• Automatic rinse aid injection

• Automatic drain (no stem pipe)

• Double skinned door

• Easy clean pressed wash chamber

• Minimum rinse temperature cut out

• 15 amps

• High wash chamber

Inclusions:

1 x Wire glass rack insert 17"x14"

1 x Drain hose

1 x Water connection hose

1 x Operating manual

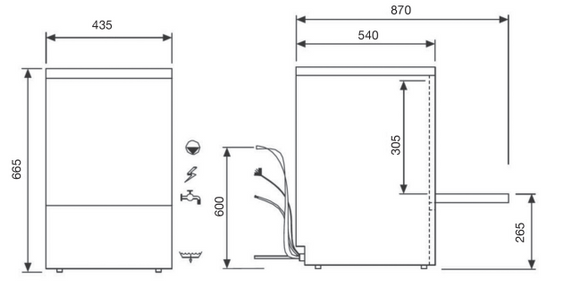

Technical Data:

Height Cabinet: 665mm

Cabinet inc. legs: 807-867 mm

Usable Wash: 305mm

Cabinet Width: 435 mm

Cabinet Depth: 540mm, with door open: 870 mm

Size: H807-867 mm x 435 W x 530 D

Capacities:

Loads/ Hour:  up to 30*

Water per Cycle: 2L*

Wash Pump: 300W

Wash Tank Litres: 11

Boiler Tank Litres: 2.6

Element (Wash): 600W

Element (Boiler): 2600W

Detergent Injection: Yes

Rinse Aid Injection: Yes

Temperature:

Wash Degrees C: 60 ºC

Rinse Degrees C: 82 ºC

Plumbing:

Drain: Pump out

Water: 3/4" BSP (hot)

Electrical:

Volts/Hz: 240V AC/ 50Hz

Amps: 15 Amps

* Subject to incoming water temperature + pressure.

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
