LUUS RC-45 Rice Roll Steamer - 1 Jet Burner & Thermostat

LUUS RC-45 Rice Roll Steamer - 1 Jet Burner & Thermostat

Ideal for 'chung fun' production and other steaming. This compact steamer with thermostatically controlled jet burner is open pot design with manual fill. Suitable for smaller volume production of 'cheung fun.' For higher demands, the YCR-1 unit is recommended.

Key Features:

• Set thermostat to highest setting for max steam output

• Includes pilot, FFD, piezo and high temp cutout

• Water purifying overflow system

• Marine grade 316 stainless steel tank

• 35 litre tank capacity

• Cabinet design with convenient front panel controls

• Supplied with steamer plate and lid

• 15 month ‘Platinum Warranty’

• Easy to clean and service

Rice Roll Steamer

• 63 mj jet burner with pilot, FFD and piezo ignition

• Adjustable thermostat accurately controls water temp

• Water purifying overflow system to remove excess starch

• High temperature cut-out safety mechanism

• Marine grade 1.5mm 316 stainless steel tank

• 35 litre tank capacity

• Tank filter insert 0.9mm 304 stainless steel

• 0.9mm 304 stainless steel lid

• 3mm Aluminium perforated steam plate

• Rear laundry arm with controls located on front panel

• Safety release tank drainage valve at bottom of unit

Overall Construction

• Heavy duty construction

• Constructed 0.9mm 304 stainless steel door

• Fiberfrax Durablanket insulation on both sides of tank

• Welded 1.2mm 304 stainless steel front hob

• Front and side panels 0.9mm 304 stainless steel

• Splashback 1.2 mm 304 stainless steel

• Includes stainless steel legs with 55mm adjustable range

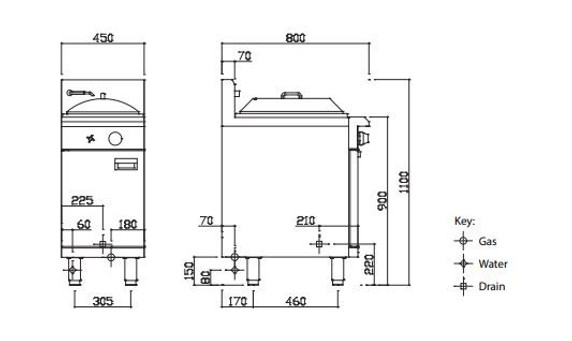

Dimensions

• 450mm x 800mm x 1100mm H

• Working height 900mm

• Weight 74kg

• Packed dimensions 640mm x 860mm x 1260mm H

• Packed weight 94kg

Connections

• Gas 3/4” BSP male

• Gas 180mm from right, 70mm from rear, 150mm from floor

• Supplied with gas regulator (specify Nat or LP on order)

• Water inlet 1/2” copper tube

• Water 60mm from left, 70mm from rear, 80mm from floor

• Drain 1” BSP male

• Drain 225mm from left, 210mm from front, 220mm floor

Cleaning & Servicing

• Easy access to all parts & components from front

• Removable lid and inserts

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
