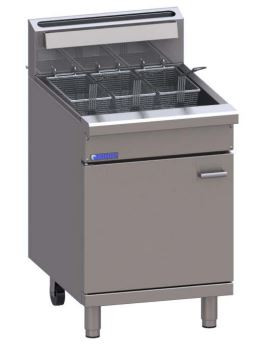

LUUS FVG-60 - 3 Basket V-Pan Fryer

This slimline V-Pan Fryer is distinguished by its easily maintainable stainless steel “V-pan” tank and a spacious cool zone for enhanced convenience.

Designed for performance, functionality and dependability, all at an economical price point to ensure everyday value in any commercial kitchen.

600mm wide high performance V-pan fryer. Compact 800mm deep. Slim and economically designed V-pan sandblasted tank for high efficiency. Thermostatically controlled multi jet U-burner for excellent performance and recovery. Easy to clean and maintain. Profile matched to the Professional Series range.

Features:

• Easy to clean V-pan design with reduced footprint

• High performance burner and recovery rates

• Includes pilot, FFD, piezo ignitor and high temp cut-out

• 35kg/hr production rate

• 25 litre oil capacity

• Cabinet design with internal fryer controls

• Supplied with 3 fryer baskets

• Modular design

• 24 month 'Platinum Warranty'

• Easy access for servicing

V-Pan Fryer:

• 110 MJ/hr jet burner with pilot, FFD and piezo ignitor

• Thermostatic temperature control

• Temperature range 100 – 200 C

• Safety high temp cut-out

• 25 litre tank capacity

• High temp stainless steel tank

• Includes 3 stainless steel fryer baskets

• 0.9mm stainless steel perforated fish/base plate

Overall Construction:

• Heavy duty construction

• Low density ceramic insulation – combustion chamber

• 1.2mm 304 stainless steel front hob and splashback

• 0.9mm 304 stainless steel side panels and door

• Front and rear adjustable legs

• Rear spacer

Dimensions:

• 600mm W x 800mm D (+ 35mm spacer) x 1100mm H

• Working height 900mm

• Weight 76kg

• Packed dimensions 640mm x 860mm x 1260 mm H

• Packed weight 96kg

Connections:

• Gas ¾” BSP female

• Gas 81mm from left, 212mm from floor

• In-built gas regulator (specify type of gas on order)

• Drain 1 ¼” BSP male

• Drain 300mm from left, 400mm from floor, 90mm from front

Cleaning & Servicing:

• Easy access to all parts 7 components

• V-pan easy-to-clean design

• Rear basket support bar

• Removable baskets and insert

Model: FVG-60

Description: 3 basket single pan fryer

Nat Gas: 110 MJ/h

LP Gas: 110 MJ/h

Warranty: 24 Month "Platinum Warranty"

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
