The PROFI model for reliable and simple washing of tableware, cutlery and glasses. Ideally suited for use in restaurants, bistros and cafes.
Key Features:
- Front door glass and dishwasher with optional double rack system, bottle wash & CUTLERY PREMIUM
- Nominal capacity up to 40 racks/h or 720 plates/h or 1,440 glasses/h
- Nominal capacity with double rack: up to 80 racks/h (40 plate racks + 40 glass/cup racks)
- 6 automatic cycles: short, standard, water X-change, STARCH-REMOVAL, permanent, hygiene
- Ready to install - completely equipped: fill / drain hose, power cord (240 V connection), detergent dispenser, rinse aid dispenser, rinse pump, drain pump and back-flow preventer
- Tank, frame, rinse arm and panels are stainless steel 1.4301
- Integrated WiFi module
- 1 plate rack P-18-12
- 1 universal rack B-00-07
- 1 cutlery rack with 4 boxes 01-246175-1
Features:

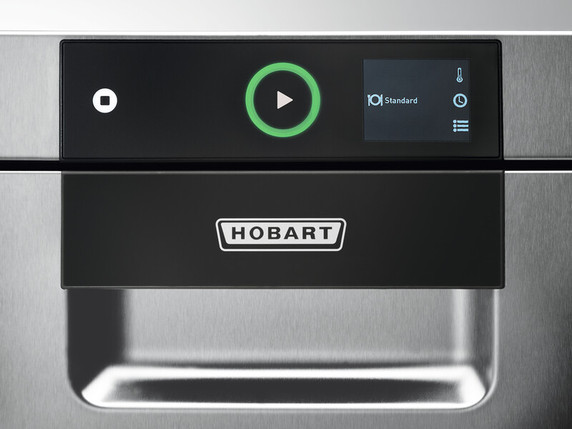

• VISIOTRONIC-TOUCH control: colour touchscreen (displays text and graphic) in conjunction with single button control and remaining cycle time indication.
• SMARTCONNECT app: controlling your warewash operation with smart technology: status and messages, usage and operating costs, hygiene, service and consumables order.
• Self-cleaning wash system: The combined wash and rinse system features innovative self-cleaning of the wash arms with every cycle. This saves time and ensures a perfect cleaning result.
• SENSO-ACTIVE resource management: constantly measures the quality of the wash water and keeps the amount of rinsing needed in each rinse cycle to the minimum in order to guarantee a fully hygienic wash result.
• Optional: 2IN1 double rack system: two racks can be washed in a single wash cycle. One rack of cups can be washed underneath, while a second rack containing dishes and cutlery can also be washed above it. Thanks to the optimum use of the entire wash chamber the performance of the machine can be doubled.
• Optional: CUTLERY PREMIUM: The innovative system ensures clean and shiny cutlery without polishing. The program is selected automatically by the machine.
• CLIP-IN wash and rinse arms: can be removed with one hand and without any tools.
• Intelligent data documentation: automatic recording of important operational data and consumptions and indication on the display.
• USB-interface: comfortable download of operational data in form of a protocol via USB.
• GENIUS-X² fine filter system: advanced filter system with prewash function reduces detergent consumption up to 35%.
• Interlocked strainer: prevents operation without tank strainer.
• Optional refill signal: monitors contents of external as well as integrated chemical containers.
• Hygiene programme: for removal of calcium carbonate and other deposits from wash chamber.
Thermolabel 71 °C: default temperatures setting acc. European DIN can be switched by operator to a higher thermolabel setting.
Watermark approved
Technical Data:
Cycle Times*: 90/180/360 seconds and continuous
Water Consumption: 1.8 L/Rack
Tank Capacity: 10.6 L
Tank Heating: 0.8 kW
Power Supply: 415/ 50 / 3N (240/50/15A)
Booster Loading - Standard: 2.0 kW/ 15A
Booster Loading - Alternative: 6.1 kW/ 15A (3phs)
Total Loading - Standard: 2.6 kW/ 15A
Total Loading - Alternative: 7.7 kW/ 15A (3phs)
Wash pump: 0.6 kW/ 350 l/min
Rack Size: 500 x 500
Loading Height: 425 mm
Noise Level: 69 dB (A)
Weight (gross/ net): 70 / 60 kg
*Thermostop guarantees required temperatures with cold water and / or 230 V connection, the actual cycle times extend accordingly.
For machine protection the water hardness should not exceed 3°dH, if higher we recommend using an integrated water softener or an external water softener of the product line HYDROLINE PROTECT.
To avoid spots and streaks on the wash ware, we recommend the usage of an demineralisation cartridge
(HYDROLINE STAR / STAR EXTRA) or a reverse osmosis system HYDROLINE PURE.
External dimensions: 600mm W x 603 D x 825 H
Warranty: 12 Months
Please note: For machine protection the water hardness should not exceed 3°dH, if higher we recommend using a HOBART HYDROLINE water softener / treatment system.
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
