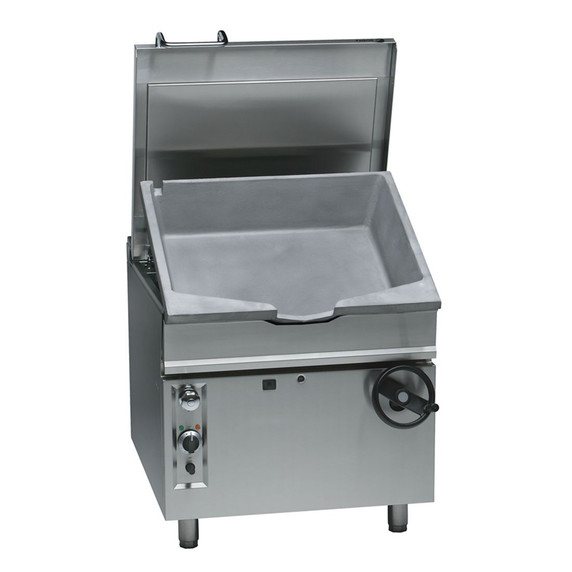

Fagor 900 series NG 80 litre crank tilting bratt pan SBG9-10I
The Bratt pans in the 900 Series have counterbalanced hinged lids with a lower reinforced recess. The hinge allows the lid to be opened at any angle. The pans have a temperature control thermostat with a temperature range of 50ºC to 315ºC, and pilot lights to indicate machine on and machine heating.
Features:
- Made of stainless steel
- Counterweighted hinged lid
- Lid can be used as benchtop when closed
- Pan capacity: 80 litres (approx.)
- Surface area: 50 dm2
- Stainless steel pan, with heat diffuser bottom 10 mm. thick
- Stainless steel tubular burner controlled by solenoid valve and thermostat temperature control (50ºC to 315ºC)
- Crank tilting system
- Safety system to extinguish the flame if the pan raises
- Water feed
- Power: 18.6 kW or 66 mj./h
Dimensions: 850 W x 900 D x 850* H mm.
*Supplied on height adjustable legs; total height adjusts from 850mm to 900mm
Net Weight (Kg): 172
Electrical supply: 230V-1+N
Warranty: 2 Years Parts and Labour + 2 Years Parts Only when registered within 14 Days of Invoice
UNIT NOT SUPPLIED WITH POWER CORD AND PLUG.
THESE MUST BE INSTALLED BY A QUALIFIED ELECTRICIAN.
N.B Image is for illustrative purposes only. Specifications are subject to change without notice.
