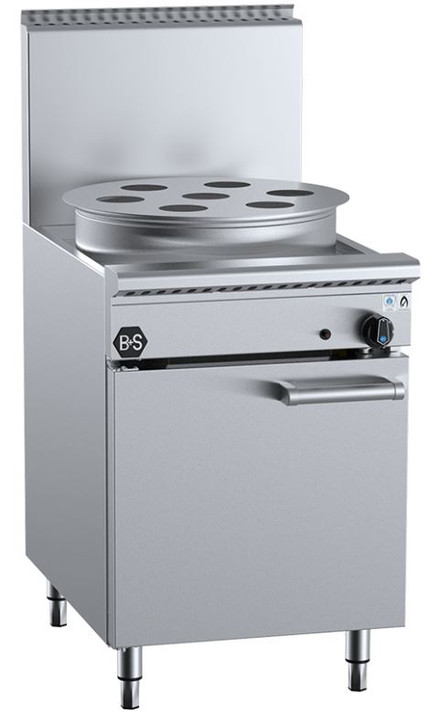

B+S Black Series YCJSF-1HE Single Hole Waterless Heat Exchange Steamer
The B+S Waterless Heat Exchange (HE) Steamer has been designed without the need for water deck cooling. A continuous supply of water is ensured by the use of an auto refill system. This not only eliminates time-constrained chefs being able to inadvertently leave the water taps on but also ensures only water that is needed for cooking is consumed.
Standard Features:
• AISI Grade Stainless Steel
• Heavy duty complete stainless steel cabinet frame
• 87.5MJ 18-Jet Duck Bill Burner (DB)
• Insulated heat exchange chamber – 2mm thick
• Efficient omnidirectional conically perforated steam vent
• Overheat tank safety protection device fitted
• Automatic ball float refill mechanism allows for easy operation
• 37L water capacity
• 7-Hole perforated steaming plate
• Flame Failure - Included as standard
• Piezo ignition to pilot duck bill burner
• Front access to all components makes service easy
Options:
• Natural or LPG Gas
• Non-swivel rear castors – Set of two
Dimensions: 600mm W x 840 D x 1030 H
Gas Consumption (Mj/h): 87.5 Mj/h Natural Gas and 84 j/h LPG.
Connections:
Gas (GI) (BSP): ¾"(M)
Water (WI): ½" (Copper)
Drain (D) Waste: D= ¾" BSP (F) WASTE = 1 ½" BSP (M)
Supply Pressure (KPa): Natural Gas: 1.0 and LPG: 2.6
Warranty: 24 Months
NB. Gas regulator is included with the unit.
Must be installed by an authorised installer in accordance to AS/NZS5601 refer to current version.
Approval Number: GMK10697
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
