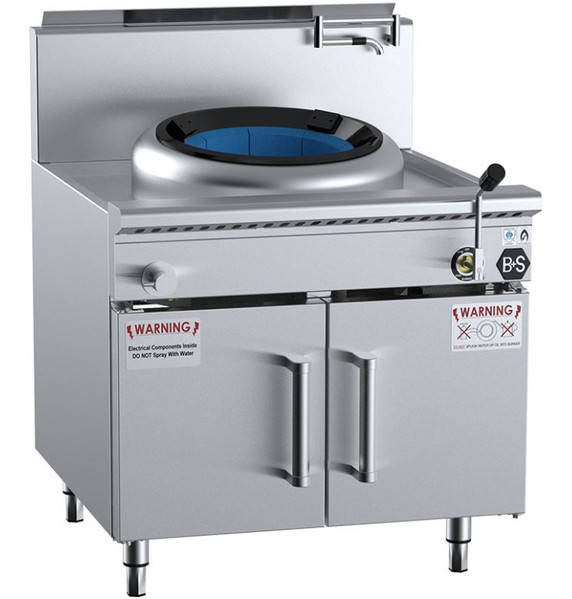

B+S Black Series CCF-HP1S Gas Single Hole Hi Pac Wok To Suit Bs Black Range Profile
The B+S Black Waterless HiPac Wok is the most powerful Wok Cooker in Australia. Proudly designed by B+S and constructed using only the finest quality materials, all on a heavy-duty stainless steel frame designed to prolong the life span of the appliance.
Water deck cooling is not required, therefore reducing water consumption and costs.
This unit is ideal for high output kitchens, such as large dining venues or small kitchens where space is tight as this unit can do the work of 2-3 Hole Wok Cookers.
Standard Features:
• AISI Grade Stainless Steel
• Heavy duty complete stainless steel frame
• Durable cast iron ring – 335mm Diameter
• Powered by an efficient stainless steel low noise air forced burner
• Easily removable twist off burner allows for easy cleaning
• Ceramic lined combustion chamber increases cooking speed
• Multi layered insulated pressed top deck - 1.5mm Thick
• Waterless feature eliminates the need for deck cooling
• German manufactured pilot and self-diagnostic system
• Automatic ignition system with flame failure status indicators
• Heavy duty lever action gas control allowing flame modulation
• Manually operated laundry arm and spindle
• Front waste gutter allows for greater ease in cleaning
• Waste shovel included
• Front access to all components makes service easy
Options:
• Natural or LPG Gas
Dimensions: 800mm W x 840 D x 1030 H
Gas Consumption (Mj/h): 135 Mj/h Natural Gas and 165 Mj/h LPG
Connections:
Gas (GI) (BSP): 3/4"(M)
Water (WI): ½" (Copper)
Waste (BSP): 1½"(M)
Electrical Connection (EC): 10A 240V~ 1.2m Plug
Supply Pressure (KPa): Natural Gas: 0.9 and LPG: 2.3
Warranty: 24 Months
NB. Combination control valve with inbuilt regulator is supplied within the unit
Must be installed by an authorised installer in accordance to AS/NZS5601 refer to current version.
Approval Number: GMK10700
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
