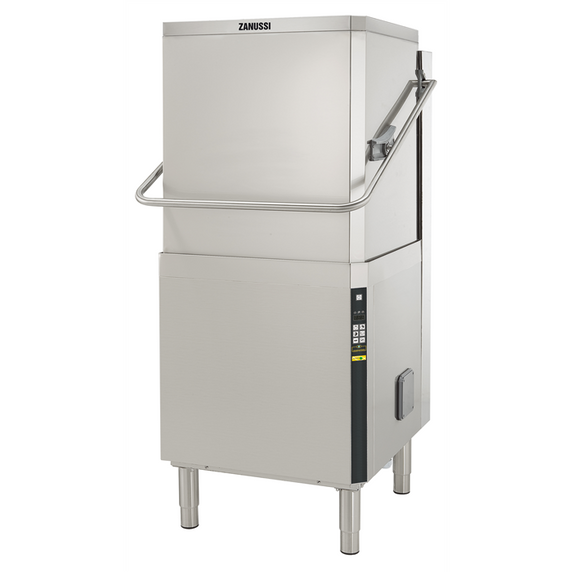

About Zanussi 504273 - Premium Passthrough Dishwasher w Auto Descaling & Advanced Filtering
Hood type dishwasher, with double skin insulated manual hood, guaranteed rinse system (Active), automatic deliming device, advanced filtering system, built-in rinse aid dispenser, detergent dispenser and drain pump, WRAS approved, 80r/h.
Features:
• Advanced Filtering System provides cleaner wash water and higher active detergent thus ensuring better washing performances and lower running costs.
• Built-in atmospheric boiler sized to raise incoming water to a minimum of 84 °C for sanitizing rinse. No external booster is required. Constant temperature of 84 °C throughout the rinsing cycle regardless of the network's water pressure.
• Unique temperature interlock guarantees required temperatures in both the wash and final rinse.
• Incorporated Soft Start feature to offer additional protection to more delicate items.
• Slanted wash arms and sloped ceiling to avoid detergent filled wash water dropping on clean dishes after the rinsing phase, thus guaranteeing ideal washing results.
• Cycle may be interrupted at any time by lifting the hood.
• Automatic self-cleaning cycle and self-draining vertical wash pump and boiler to avoid bacteria proliferation.
• State-of-the-art electronic controls with built-in programming, self-diagnostics for serviceability and automatic interior self-cleaning cycle.
• Built-in rinse aid and detergent dispenser with automatic initial and continuous cycle loading for perfect result while minimizing service and maintenance needs.
• Boiler power setting from control panel to facilitate technician's operation when reducing total installed power, thus avoiding the need of machine opening.
• Three phase electrical connection, convertible to single phase on-site.
• IP25 protection against water jet, solid objects and small animals (larger than 6 mm).
• Green light of Guaranteed Rinse System (ACTIVE) confirms that items have been rinsed properly.
• CLEAR BLUE advanced filtering system provides cleaner wash water and higher active detergent thus ensuring better washing performances and lower running costs.
• NSF/ANSI 3 and DIN 10512 compliant.
• Maximum capacity per hour of 80 racks or 1.440 dishes (High productivity mode) easy to switch to 63 racks or 1.134 dishes (NSF/ANSI 3 mode) by pressing a button.
• 45/84/150 seconds cycles (High productivity mode); 57/84/150 seconds cycles (NSF/ANSI 3 mode).
• The machine can be connected to cold water**
Construction
• Heavy duty Stainless steel construction. Internal cavity as well as exterior panels are in 304 series Stainless steel.
• Pressed tank in front position to facilitate cleaning.
• Double skin insulated hood.
• Specially designed Stainless steel wash/rinse arms and nozzles provide superior cleaning action.
• Revolving interchangeable Stainless steel wash/rinse arms above and below the rack, screw out for simple clean up.
• Pre-arranged for on-site HACCP implementation and Energy Management device.
• Element protection from dry fire and low water.
• Unit to include drain, detergent and rinse aid dispenser pumps
Sustainability:
• ZERO LIME Device ensures total scale removal from the boiler, the hydraulic circuits and the washing chamber allowing ultimate performances and lower energy consumption thanks to the high efficiency heating element.
• Automatic Deliming Device ensures total scale removal from the boiler, the hydraulic circuits and the washing chamber allowing ultimate performances and lower energy consumption thanks to the high-efficiency heating element.
• Requires only 2 litres of water per washing cycle thus ensuring low energy, water, detergent and rinse aid consumption.
Included Accessories:
• 2 of Yellow cutlery container PNC 864242
• 1 of Basket for 18 dinner plates or 27 side plates (max. diam. 240 mm) PNC 867002
• 1 of Basket for cups and coffee cups (24-48 pcs) - blue PNC 867007
External Dimensions: 752mm W x 755 D x 1,567 H
Electric:
Supply voltage: 504273 (ZHT8ILG): 400 V/3N ph/50 Hz
Convertible to: 230V 1N~; 230V 3~
Default Installed Power: 9.9 kW
Reducible Installed Power:* 6.9 kW
Boiler Heating Elements Power:* 9 kW
Boiler Reducible To:* 6 kW
Electrical power max.: 12.9 kW
Tank heating elements: 3 kW
Water:
Drain line size: 20.5mm
Inlet water supply pressure: 0.5-7 bar
Boiler Capacity (lt): 12
Tank Capacity (lt): 24
Key Information:
N° of cycles: 3
Duration cycle:* 45/84/150 sec.
Duration cycle - NSF/ANSI 3 compliant: 57/84/150 sec.
Racks per hour:* 80
Racks per hour - NSF/ANSI 3 compliant: 63
Dishes per hour:* 1440
Dishes per hour - NSF/ANSI 3 compliant: 1134
Wash temperature: 55-65 °C
Wash temperature - NSF/ANSI 3 compliant: 75 °C
Rinse temperature: 84 °C
Net weight: 117 kg
* According to market standard, the productivity is declared at an inlet water supply temperature of 50°C . If the water is supplied at 65°C, the power can be reduced by 3 kW without any loss in productivity.
NOTE: If the water supply temperature is less than 50°C, it is necessary to request higher power to maintain productivity.
Air Emission:
Latent Heat: 500 W
Sensible Heat: 2000 W
N.B Image is for illustrative purposes only. Specifications are subject to change without notice.
