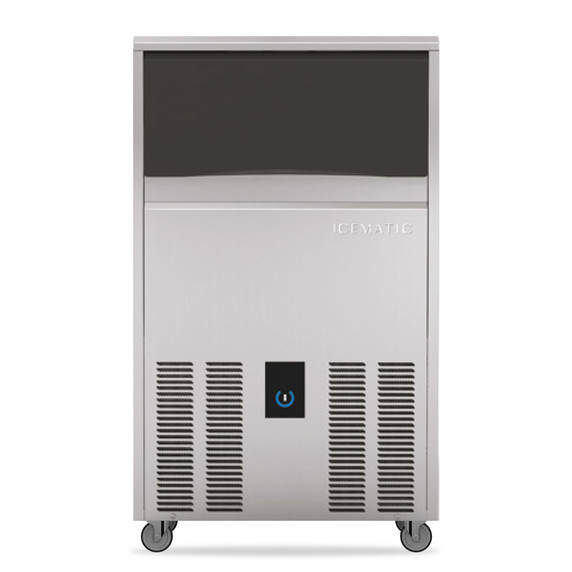

Icematic C54-A - Self Contained Ice Machine 20g Bright Cube
The C-Series icemaker grants a high production capacity, despite their compact dimensions. A fully electronic range of full-cube icemakers, in accordance with the strictest anti-pollution norms adopting R290 natural gas.
The Bright Ice Cube, appreciated for its versatility, is perfect for use in ice buckets, whiskey on the rocks, cocktails and appetisers. The crystal clear appearance of the Bright Cube makes it essential when a high quality is required.
Features:
- Self contained eco friendly ice maker
- Up to 54kg production per 24/hr of 20g medium ice cube
- 22kg storage bin
- Bright cube 20g weight - 32mm x 35mm x 37mm
- Complete with legs, water & drain hoses + 1 ice scoop
- Air or water condensation
- Stainless steel construction
- Sanitization cycle
- Acoustic and luminous alarms
- Report HACCP alarms
- Cube weight adjustment
- Storage bin ice level adjustment
- USB connection for software update and HACCP data download
- Condenser fan controlled at low ambient temperatures
- Predictive analysis of malfunctions
- Machine performance report
- 10 AMP power supply
- Zero pollution R290 gas
- Energy saving up to 25% compared with old models
- 215 mm drain height including legs to finished floor
Origin: Italy
Air Temperature: Min 10°C and Max 40°C
Water Temperature: Min 5°C and Max 35°C
Water Pressure: Min 1 Bar (14psi) and Max 5 Bar (70psi)

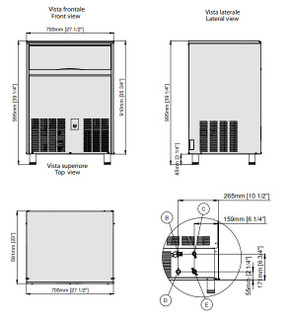

Dimensions: 500 mm W x 580 D x 800 H - 835 mm Height (with castors)
Power: 10 Amp Power Supply
Warranty: 24 Months Parts & 12 Months Labour
How Often To Clean And Maintain Your Ice Machine
External Body Cleaning
A daily wipe down of the external surfaces should be performed in order to keep the body clean, it is enough to use a cloth soaked into a specific chlorine-free product suitable for stainless steel.
Cleaning The Ice Storage Area
Recommended at least once a week to maintain proper sanitation, considering that the ice produced is administered to users. Remove all ice from the bin and clean the inside with a sponge moistened with warm water and a non-acidic cleaning agent. Rinse with clean water and properly dry it.
Cleaning/Replacing Water Filters
Cleaning and maintenance of water filters should be carried out a minimum of every three months. This includes changing the filter cartridge. It may be necessary to do this more often depending on your water quality as this can exhaust the cartridge quicker.
Cleaning The Air Condenser
In order to make the most of your ice maker in terms of performance and durability, it is necessary to periodically clean the air condenser of the machine. This should be carried out by a licensed technician at a minimum of every six months, more often if the machine is subject to high levels of dust, exhaust fumes, etc.
Cleaning And Sanitising Cycle
Recommended at a minimum of at least twice a year, to remove the presence of limescale and / or mould and / or algae that inevitably form over time from the entire water circuit and from all parts in contact with the water. The frequency of cleaning depends on the hardness of the water, so it is possible that in the presence of particularly “hard” waters, rich in calcium, it is necessary to carry out a more frequent thorough cleaning of three to four times a year. Icematic ice machines have a special function called “washing cycle”, to be used for this operation.
|
|
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
