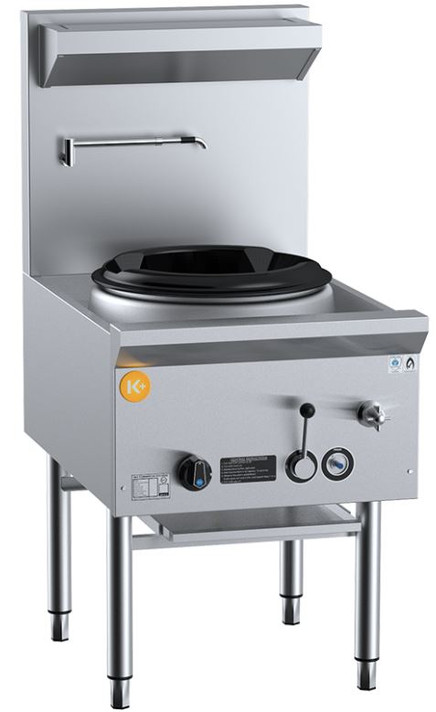

B+S K+ UFWWK-1 Gas Single Hole Waterless Wok Table

B+S K+ UFWWK-1 Gas Single Hole Waterless Wok Table

The K+ Waterless Wok Table is constructed on a solid mild steel frame complete with a thick mild steel plate ensuring long-lasting performance. This unit does not require water deck cooling.

The unit is powered by your choice of a 105Mj 24-jet chimney burner or 110Mj 18-jet duck burner, both of which are fitted with flame failure as standard. Lever handle gas controls enable greater regulation of flame setting, which is essential during peak periods. A heavily insulated long skirt unflued cast iron eliminates radiant heat.

All external surfaces are made of AISI 304 grade stainless steel that is strong and durable. The deck is 1.5mm pressed top which allows for ease of cleaning around the ring area. A front waste gutter allows for additional ease of cleaning.

Standard Features:

• AISI Grade Stainless Steel

• Heavy duty complete stainless steel frame

• Long skirt cast iron unflued ring - 340mm Diameter

• Waterless feature eliminates the need for deck cooling

• One-piece machine pressed top deck - 1.5mm Thick

• Manually operated laundry arm and spindle

• Heavy duty stainless steel lever action gas control

• Flame Failure & Pilot - Included as standard

• Front waste gutter allows for greater ease in cleaning

• Waste shovel included

• Front access to all components makes service easy

Options:

• Natural or LPG Gas

• 24 Jet Mongolian Chimney Burner (CB)

• 18 Jet Duckbill Burner (DB)

Dimensions: 600mm W x 840 D x 1300 H

Gas Consumption (Mj/h): Mongolian Chimney Burner: 105Mj/h Natural Gas and 75Mj/h LPG.  Duckbill Burner: 110Mj/h Natural Gas and 90Mj/h LPG

Connections:

Gas (GI) (BSP): 3/4"(M)

Water (WI): 1/2" (Copper)

Waste (BSP): 2"(M)

Supply Pressure (KPa): Natural Gas: 1.0 and LPG: 2.6

Warranty: 18 Months

NB. Gas regulator is included within the unit.

Must be installed by an authorised installer in accordance to AS/NZS5601 refer to current version.

Approval Number: GMK10696

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
