Zanussi

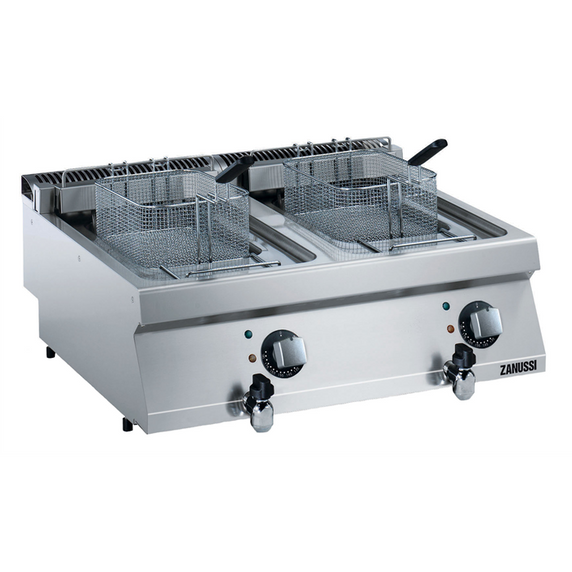

2 x 12 Litre Electric fryer top with 2 wells and 2 baskets (internal heating elements).
Features:
• Unit to be mounted on open base cupboards, bridging supports or cantilever systems
• Thermostatic regulation of oil temperature up to a maximum of 185 °C
• Overheat protection thermostat as standard on all units
• Oil drains through a tap positioned on the front the wells
• All major compartments located in front of unit for ease of maintenance
• IPx4 water protection
• Incoloy armoured heating elements located inside the well can be lifted up for easier cleaning
• Optional portable oil quality monitoring tool (code 9B8081) for efficient oil management, please ask us for a quote.
• Suitable for countertop installation
Construction:
• Interior of well with rounded corners for ease of cleaning
• All exterior panels in Stainless Steel with Scotch Brite finishing
• One piece pressed 1.5 mm work top in Stainless steel
• Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps
Specifications:
Usable well dimensions (width): 240 mm
Usable well dimensions (height): 235 mm
Usable well dimensions (depth): 420 mm
Well Capacity: 10 Lt Minimum; 12 Lt Maximum
Net Weight: 45kg
Shipping Dimensions: 820mm W x 860 D x 530 H
Electric:
Supply Voltage: 380-400 V/3N ph/50/60 Hz
Total Watts: 17.4kW
Predisposed for: 380-400V 3N~ 50/60Hz 15,7-17,4kW
If appliance is set up next to or against temperature sensitive furniture or similar, a safety gap of approximately 150mm should be maintained or some form of heat insulation fitted.
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
