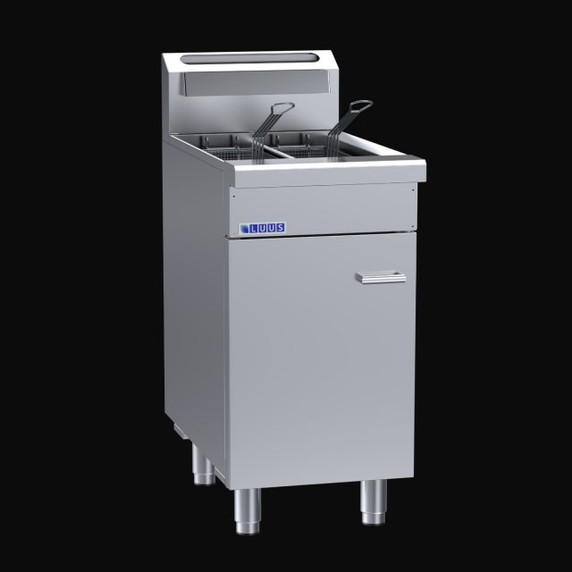

LUUS FSV-45 - 2 Basket Split V-Pan Fryer

About LUUS FSV-45 - 2 Basket Split V-Pan Fryer

FSV series fryers feature an easy to clean stainless steel split “V-pan” tank with a large cool zone. Premium components such as Fenwal thermostats improve accuracy and reliability, while efficient multi-jet burners optimise performance and recovery rates.

Features:

• Easy to clean twin-pan design with cool zone

• Saves space and eliminates cross-contamination

• High performance burners and recovery rates

• Includes 2 x pilots, FFDs, piezos and high temp cutouts

• 32kg/h production rate

• 2 x 11.5 litre oil capacity

• Cabinet design with internal fryer controls & drains

• Supplied with 2 fryer baskets

• Modular Professional series design

• 24 month ‘Platinum Warranty’

• Easy control/burner access for servicing

Split Pan Fryer:

• 2 x 50MJ/h jet burners with pilot, FFD and piezo ignition

• Mechanically controlled thermostat

• Thermostat temperature range 100 - 200° C

• High temperature cut-out safety mechanism

• 1.5mm stainless steel stud weld efficient tank design

• 2 x 11.5 litre fry pot capacity

• Includes 2 stainless steel fryer baskets

• 0.9mm stainless steel perforated fish/base plate

• Tank drainage valves at bottom front of unit

Overall Construction:

• Heavy duty construction

• 0.9mm stainless steel double-skinned door

• High density Fiberfrax Durablanket insulation around tank

• Welded 1.2mm stainless steel front hob

• Front panels 0.9mm stainless steel

• Side panels 1.2mm stainless steel

• Splashback 1.2 mm stainless steel

• Includes stainless steel legs with 55mm adjustable range

Dimensions:

• 450mm x 800mm x 1100mm H

• Working height 900mm

• Weight 85kg

• Packed dimensions 640mm x 860mm x 1260mm H

• Packed weight 105kg

Connections:

• Gas 3/4” BSP male

• Gas 225mm from right, 55mm from rear, 165mm from floor

• In-built gas regulator (specify Nat or LP on order)

• Drains 1 1/4” BSP male and 170mm in from both left and right, 200mm from front, 415mm from floor

Cleaning & Servicing:

• Easy access to all parts & components from front

• Open pot easy-to-clean design

• Rear basket support bar

• Removable baskets and inserts

Options/ Accessories:

• Additional fryer baskets

• Joining caps

• RH and LH side shields

• Rear castors

Natural Gas: 100 MJ/h

LP Gas: 100 MJ/h

Please advise preferred gas type when ordering.

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
